TCA9534: Does TCA9534 Have additional current consumption in standby mode?

Erwin Noordhuis

Part Number: TCA9534
Other Parts Discussed in Thread: TCA6408A

Tool/software:

I found out TCA6408A has an additional current in standby mode of around 25uA. I could not find a parameter like this for TCA9534 . Does that mean it doesnt exist? I need it to be very Low Power

22 days ago

0 Tyler Townsend 22 days ago

TI__Mastermind 47308 points

Hi Erwin,

The TCA9534 standby ICC mode current consumption is legit:

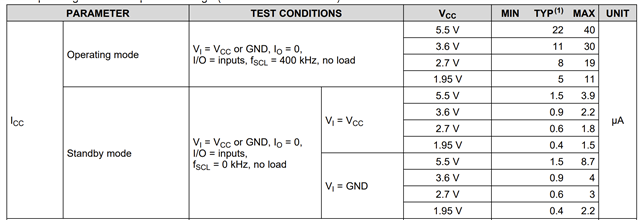

TCA6408A datasheet:

The 25 uA is additional current to ICCI when an input is held at a voltage below VCC by 0.6V. This spec is showing the additional current through ICCI if SDA/SCL/RESET is at a voltage below VCC by 0.6V.

If SDA/SCL//RESET are all idle and pulled high through a PU resistor, then you can refer to the standby mode current which is max 7 uA across temperature for TCA6408A.

TCA9534 does have increased current consumption for I/O's held at a voltage below VCC, however, it is not explicitly spec'ed in the datasheet.

What standby current do you need in your system? How many uA?

Regards,

Tyler

0 Erwin Noordhuis 22 days ago in reply to Tyler Townsend

Prodigy 70 points

Thank you for your fast reply

The current when the inputs are high is for us the most important thing. so the current on the P-ports. What is the than the current for TCA9534 ?

0 Jack Guan 21 days ago in reply to Erwin Noordhuis

TI__Mastermind 40096 points

Hi Erwin,

We are still looking into this and will provide a response soon.

Regards,

Jack

0 Clemens Ladisch 21 days ago in reply to Erwin Noordhuis

Guru 316690 points

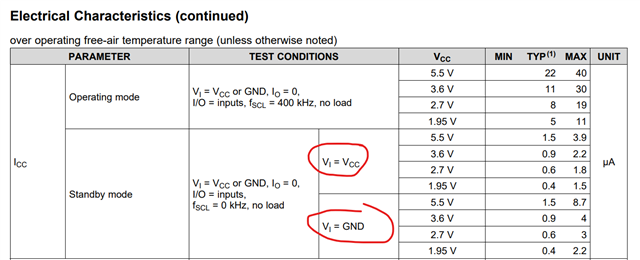

The datasheet already specifies the standby supply current and the input leakage current. The additional current would happen only if some input were at an invalid voltage.
