SN65DSI85Q1-EVM: I would like to request a free sample of one SN65DSI85Q1-EVM board

Hi,

I am currently based in Taiwan. Could you kindly provide me with the contact email address and phone number of the local corresponding FAE?

I would like to get in touch with an FAE to further discuss the possibility of obtaining a trial unit of this EVB board.

Thanks

Hello,

Due to US public holiday, support will resume on Tuesday, September 2nd. Thank you for your patience.

Regards,

Logan

Hello:

I am currently based in Taiwan. Could you kindly provide me with the contact email address and phone number of the local corresponding FAE?

I would like to get in touch with an FAE to further discuss the possibility of obtaining a trial unit of this EVB board.

Thanks

Can Reply me?

Hello,

We're sorry for the delay. I have reached out to an FAE and we will get back to you soon.

Best regards,
Ikram

Hello, at the moment we are not sharing free samples for this EVM. Please order the EVM from TI.com website.

Best regards,
Ikram

Dear Ikram:

Thanks Reply.

If I have questions about register settings corresponding to SN65DSI85 IC functions, can you provide a FAE window for inquiry?

Hello,

We can answer any design and technical questions here.

To program the device, you can use the DSI tuner GUI to enter the configurations. Then you would need to program the registers via I2C. The EVM user guide also has information about the hardware setup.

DSI Tuner: SN65DSI83: DSI TUNER tool needed

Guide: https://www.ti.com/lit/an/slla332b/slla332b.pdf

Best regards,
Ikram

Dear Ikram:

I would like to ask you the following question:

Does this SN65DSI85 IC have the ability to generate an LVDS pattern and output it to the panel without using a DSI signal input? (e.g., BIST mode: LVDS signal output); If this function is possible, how should the IC registers be set?If this function is possible, how should the IC registers be set?

Please reply again,thanks.

Hello,

Yes there is a test pattern mode that can be enabled, as mentioned in the datasheet (section "7.3.3 LVDS Pattern Generation").

Ikram Haque said:

DSI Tuner: SN65DSI83: DSI TUNER tool needed

Guide: https://www.ti.com/lit/an/slla332b/slla332b.pdf

To enable test pattern with the display resolution that matches the output, please use the DSI tuner tool we mentioned earlier. It's a GUI that you can install. Have you downloaded and installed it yet?

The guide we shared earlier has an example of how to enter the settings, and it will generate the initialization register settings. Then you can write those register settings to the IC registers via I2C.

Best regards,
Ikram

Dear Ikram:

I have installed DSI TUNER tool.

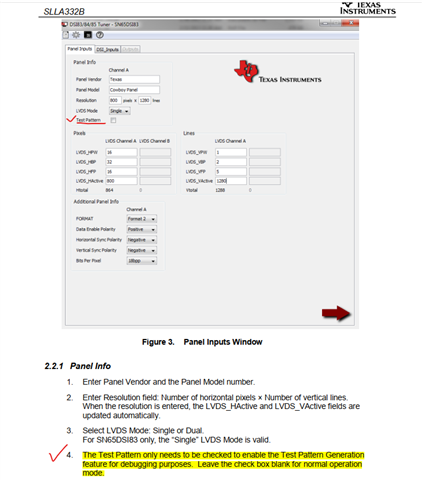

1. Does checking the Test Pattern option in the DSI TUNER tool output LVDS signals to the receiving panel? (As shown in the figure below)Does checking the Test Pattern option in the DSI TUNER tool output LVDS signals to the receiving panel? (As shown in the figure below)

2. What test patterns can be output from this LVDS Pattern Generator? How do I select an LVDS test pattern (e.g., R/G/B solid color image, grayscale image, etc.) and set register values ​​via I2C?

Hello,

1. If you check the test pattern option, then the output CSR register settings list will include a register write that enabled test pattern.

So after you enter the timings and settings for panel inputs and DSI inputs, it will go to the output panel. And you can then download the register settings list.

The list will contain all the register settings that you would have to program via I2C.

This guide we shared earlier has the instructions: https://www.ti.com/lit/an/slla332b/slla332b.pdf
Please use this app note. You will find in section "2.5 Control and Status Registers (CSR)" that it outputs a register settings list.


Example: RE: SN65DSI83: Support
Also, in the E2E thread above, we shared how the settings were entered and the last response has the generated text file with register settings.


2. The output is a 8 bar vertical color bars pattern by default.

Best regards,
Ikram
