TUSB1142: Host to Receptacle Spacing

Jack Goutier

Part Number: TUSB1142

Tool/software:

Hi,

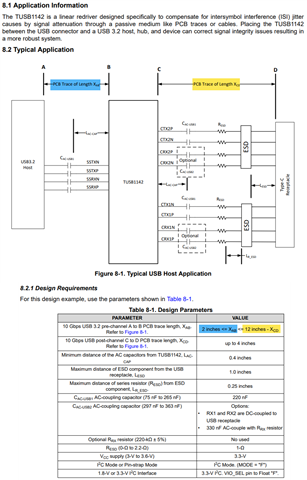

In the screenshot captured from the Mux's datasheet, it discusses the distances required for the mux to maintain signal integrity between the Host and USBC Receptacle. Are there any sources of information expanding on this? Like how drastically the integrity of signals is distorted when creating more distance between the Mux and the Host, or if there are ways to extend that distance?

Thanks!

Jack G

5 days ago

+1 Ryan Kitto 5 days ago

TI__Mastermind 36370 points

Hi Jack,

These lengths are suggested based on the estimated amount of loss per inch with FR4 PCB material. For any length greater than this, compounded with any connectors or other factors that may affect the loss of the signal, it may make it more difficult for the redriver to successfuly compensate the signal for the amount of loss accrued between the redriver and the connector, or the SOC and the redriver.

As such, we provide guidelines based on our estimates as to what length we recommend for layout routing. You can find more details in these documents here: https://www.ti.com/lit/wp/slla432/slla432.pdf?ts=1756500814288&ref_url=https%253A%252F%252Fwww.google.com%252F / https://www.ti.com/lit/wp/slyy121/slyy121.pdf .

Please let me know if you have any other questions.

Thanks,

Ryan
