In master mode, pin 2 is used for CLKOUT, so can not LED2 be used?
Also, for the master mode connection, should I just connect the CLKOUT (50MHz out) pin to the MAC's refclk pin?
Tool/software:
In master mode, pin 2 is used for CLKOUT, so can not LED2 be used?
Also, for the master mode connection, should I just connect the CLKOUT (50MHz out) pin to the MAC's refclk pin?
Hi,
Your understanding is correct. In RMII master mode, pin 2 is 50MHzOut to keep the PHY and the MAC synchronized, and 50MHzOut has to be connected to the MAC Ref Clk input.
Thanks
David
Thank you for your reply. Am I correct in understanding that LED2 cannot be used in master mode? LED2 is connected on the evaluation board, but is it intended to be used in slave mode?

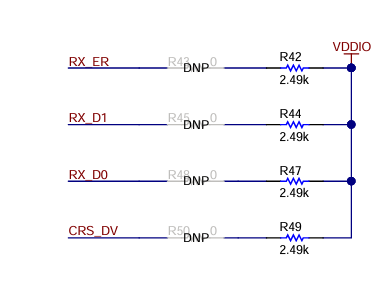

DP83825EVM master mode(default)
2pin(CLK_OUT)
Hi,
Correct, pin 2 is CLKOUT plus strap in the master mode. You can't use it as LED2. As a strap pin, it can configure pin 20 either as CRS_DV or RX_DV.
The EVM by default is set as master mode since RX_D1 has internal pulldown.
Thanks
David
