DP83867IR: Compatibility of RJMG2330A1610ER with DP83867IRRGZT PHY

Pradeepraj M

Part Number: DP83867IR

Tool/software:

We are planning to use the RJMG2330A1610ER (Amphenol) in our design due to space constraints. It is a stacked RJ45 + USB A connector with integrated magnetics, rated for 1000BASE-T and AutoMDIX.

Our PHY is DP83867IRRGZT, and we noticed that the internal magnetics configuration of RJMG2330A1610ER differs from the transformer topology recommended in TI’s reference designs.

Can you confirm if this connector is compatible with DP83867IRRGZT?
Specifically:

Are the internal magnetics suitable for the PHY’s signal requirements?
Is the center tap biasing and termination network aligned with TI’s recommendations?
Any known issues or design caveats when using this connector with DP83867IRRGZT?

Thanks,

Pradeepraj M

5 days ago

0 J 4 days ago

TI__Genius 12101 points

Hi Pradeepraj,

I couldn't find electrical specifications of the RJ-45 connector. If you could provide documentation on this, I can help you out to determine if this part suits TI's recommendations.
There is no known cause using this connector.

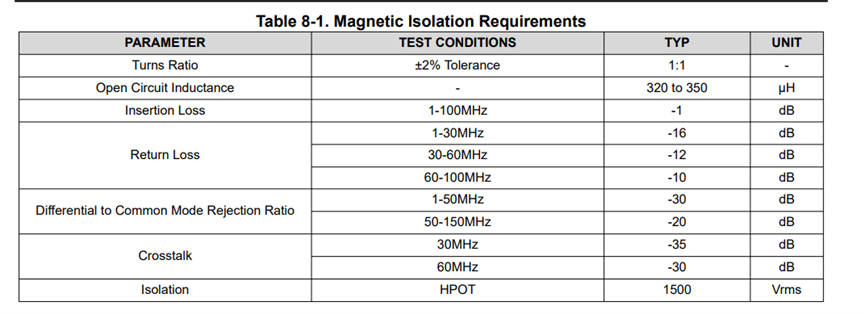

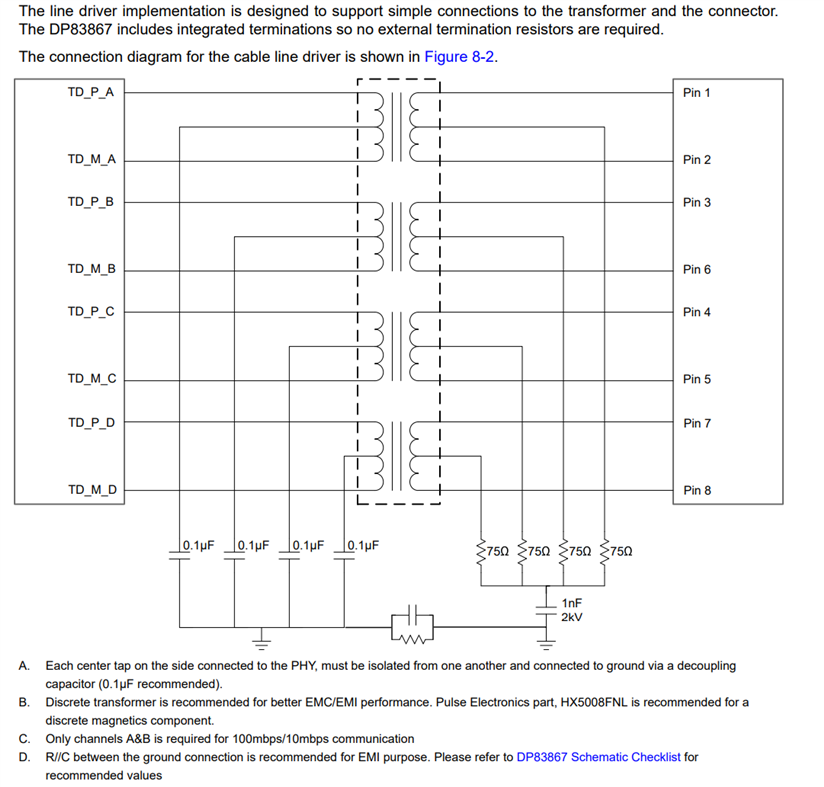

If you would like to determine this yourself, I will provide TI recommendation below:

Best,
J

0 Pradeepraj M 2 days ago in reply to J

Prodigy 100 points

Hi J,

Please find the electrical diagram of RJMG2330A1610ER in below link.

RJMG2330A1610ER--A Model

Thanks,

Pradeepraj M

0 J 1 day ago in reply to Pradeepraj M

TI__Genius 12101 points

Hi Pradeepraj,

The tolerance on the turns ratio is out of our recommendation. We typically recommend 2% and have max of 3%.
Also crosstalk for 30MHz is out of specification.

Best,
J

0 Pradeepraj M 1 day ago in reply to J

Prodigy 100 points

Hi J,

Internal magnetics not an issue right? Because in this connector type, CMC is given on PHY side. So can we go ahead with ARJ-196 or 0821-1X1T-32-F? Please confirm.

Thanks,

Pradeepraj M

0 J 1 day ago in reply to Pradeepraj M

TI__Genius 12101 points

Hi Pradeepraj,

Internal magnetics is not an issue especially because it has a separate CT for each channel.
Both ARJ-196 or 0821-1X1T-32-F are good.

Best,
