DS320PR810RSCEVM: Can we provide .brd file for customer reference?

Jenny Chen

Part Number: DS320PR810RSCEVM
Other Parts Discussed in Thread: DS320PR810, DS320PR810-SMP-EVM, DS320PR1601-RSC-EVM, DS320PR1601

Tool/software:

Hi team,

Our customer wants to recheck SI, can we/you help to provide .brd file of TI EVM for them reference.

Thank you!

Jenny

4 months ago

+1 Evan Su 4 months ago

TI__Mastermind 18800 points

Hi Jenny,

The DS320PR810-RSC-EVM board files are stored in the PCIE5-REDRIVERS-DESIGN secure folder (https://www.ti.com/secureresources/PCIE5-REDRIVERS-DESIGN).

I assume your customer already has access to the folder, so they can download the file immediately. If not, they should request access (there are many other useful files and documentation in the folder) and we will approve as soon as possible.

Best,

Evan Su

0 Jenny Chen 4 months ago in reply to Evan Su

TI__Expert 4770 points

Hi Evan,

We have searched TI website but still cannot find any information.

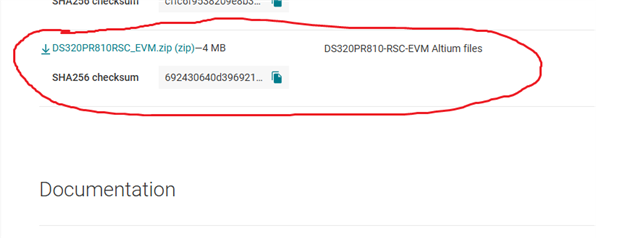

They need DS320PR810EVM_RSC (.brd file) as following, please help to check, thanks.

Or is the file below applying for the EVM?

Jenny

+1 Evan Su 4 months ago in reply to Jenny Chen

TI__Mastermind 18800 points

Hi Jenny,

The DS320PR810-RSC-EVM was designed in Altium and the only files we have for it are in my original reply. The Altium file format uses .pcbdoc. Unfortunately we don't have a .brd file for this project.

Jenny Chen said:
Or is the file below applying for the EVM?

The "DS320PR810_822_SMP_EVM.zip" file in your screenshot is a different EVM, some details may be similar but many are different.

Best,

Evan Su

0 Jenny Chen 4 months ago in reply to Evan Su

TI__Expert 4770 points

Hi Evan,

I see. However, the customer ask me double check: Do we have similar designs with brd file that can give them as reference?

Best,

Jenny

+1 Evan Su 4 months ago in reply to Jenny Chen

TI__Mastermind 18800 points

Hi Jenny,

They can compare the DS320PR810-SMP-EVM and the DS320PR1601-RSC-EVM, I think these projects were designed in Allegro file formats.

Best,

Evan Su

0 Jenny Chen 4 months ago in reply to Evan Su

TI__Expert 4770 points

Hi Evan,

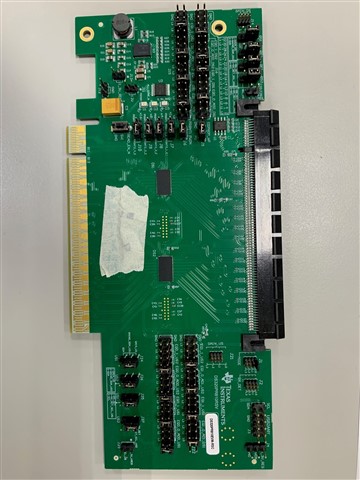

Thanks for your support. Customer and I have seen these files on the TI website before, but our design with CEM CONNECTOR and GOLDEN FINGER.

Can your team convert .pcbdoc file to .brd file?

BTW, the customer SI team can try .tgz file, do you have?

Best,

Jenny

0 Jenny Chen 4 months ago in reply to Jenny Chen

TI__Expert 4770 points

Hi Evan,

May I have your feedback?

Understand all the resources we have are already available on the website.

Just want to check internally to see if there’s any way we can provide additional support.

Thank you.

Best,

Jenny

0 Undrea Fields 4 months ago in reply to Jenny Chen

TI__Genius 12510 points

Hi Jenny,

Is the customer looking for .brd file for the EVM with Goldfinger and CEM connector? Do they need the DS320PR810 or can they use the DS320PR1601 for a reference? The DS320PR1601 has a different package, but the EVM design is generally based from the DS320PR810.

Regards,

Undrea
