TCAN1051HV: TCAN1051HVDR schematics review

Kevin Huang8
Genius 4736 points
Part Number: TCAN1051HV
Other Parts Discussed in Thread: ESD2CAN24-Q1

Tool/software:

Hi

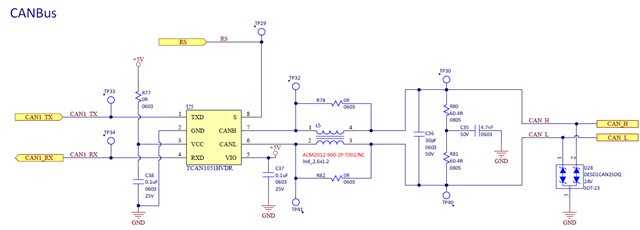

Please help review schematics, thanks!

  • 0
    TI__Guru 55676 points

    Hi Kevin,

    The schematic looks okay overall. I would recommend to depopulate C36 and may use bus caps as needed, but after the termination. Include similar to figure 11-1 of the data sheet example. Please promote ESD2CAN24-Q1 for CAN applications, thanks.

    Best Regards,

    Michael.
