DS90UB934-Q1: LVDS Eye Diagram Measurement

wang xinyi
Prodigy 30 points

Part Number: DS90UB934-Q1

Dear sir:

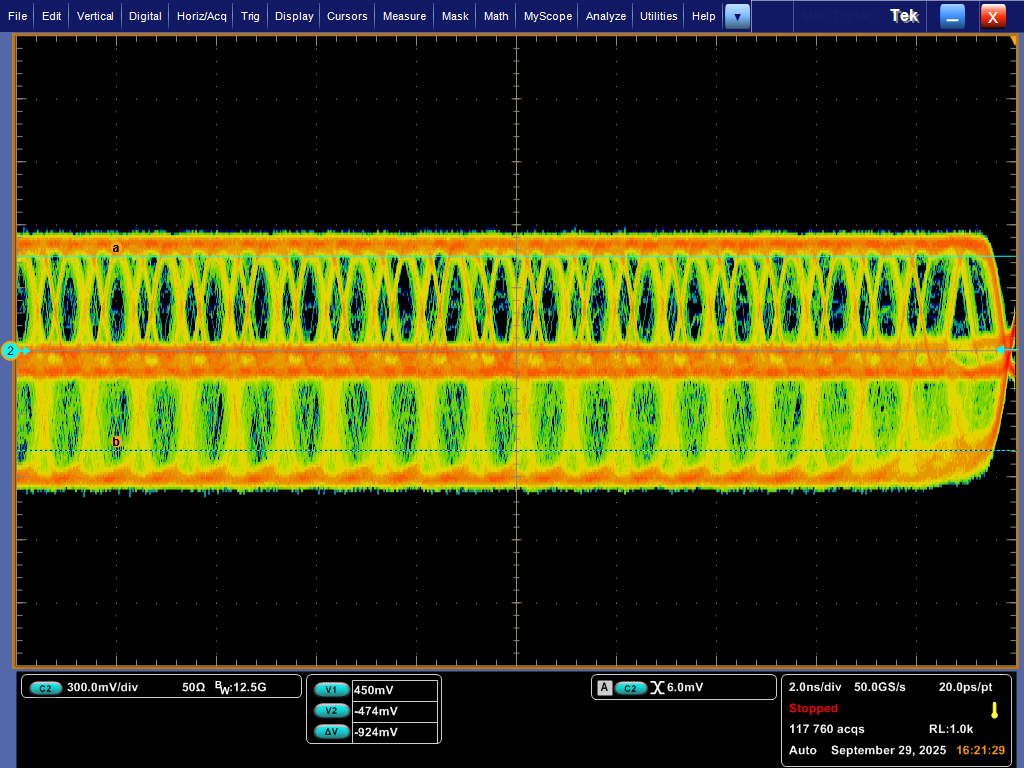

Currently, pins 41 & 42 have been measured, and the eye diagram is shown below. Does it meet the requirements? 123.png

  • +1
    TI__Mastermind 33540 points

    Hello Wang,

    You need to measure the S-Parameters of the FPD-Link signal to confirm that it meets the operational limits. These can be obtained by reaching out to a local FAE or sales contact. There is not much information that can be pulled from this scope screenshot.

    Best,

    Justin Phan
