TUSB1004: About the L_AC-to-capacitor trace length on TUSB1004

Bruce Dai

Intellectual 860 points

Part Number: TUSB1004

Hi AE,

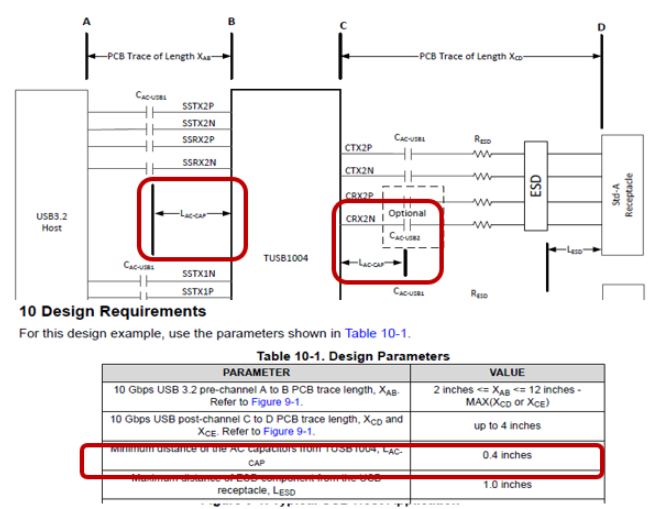

We noticed the datasheet requires a minimum 0.4-inch L_AC-Cap trace and no more than two vias.

But our layout is limited to 111 mil with three vias.

Any suggestions, or should we rely on test data for optimization?

Best Regards

8 months ago

+1 Vishesh Pithadiya 8 months ago

TI__Guru 60236 points

Hi,

Its best to use simulation data in conjunction with our recommendations. Our recommendations are based off of the material properties of FR4, changing the material will chnage the values.

Bruce Dai said:
But our layout is limited to 111 mil with three vias.

Three vias for just the post-channel is too many. Is there any way to reduce the via count?

You can refer to the TUSB1004 EVM_layout for reference:

HSDC129A.brd

+1 Vishesh Pithadiya 8 months ago in reply to Vishesh Pithadiya

TI__Guru 60236 points

Hello,

Closing thread due to inactivity. If you have any follow-up questions or concerns, feel free to reply.

0 Bruce Dai 8 months ago in reply to Vishesh Pithadiya

Intellectual 860 points

HI AE,

OK, Thanks a lot!!!!!

Best Regards
