DS160PT801X16EVM: Vaule mask

Jeff YANG

Mastermind 8400 points

Part Number: DS160PT801X16EVM
Other Parts Discussed in Thread: DS160PT801

Hi,

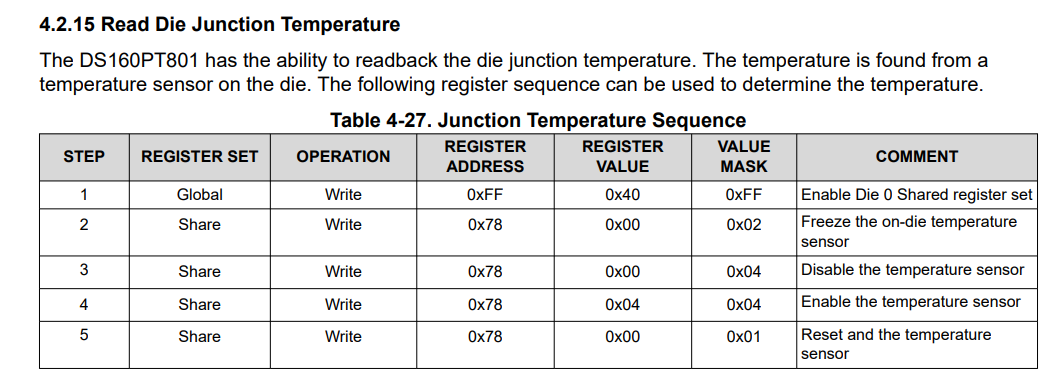

We are trying to read Read Die Junction Temperature as 4.2.15

I want check how to set value mask.

Seems just need select the bit which I want to modify?

Or something else we need to do? Thanks!

3 months ago

0 Gregory Kobyakov 3 months ago

TI__Expert 8510 points

Hi Jeff,

The mask defines the bits that should be affected by the write. Bits of the mask that are 0 should not be changed during the register write. Please see section 2.1.2 of Application Note SNLA323, this section details writes with masks.

Best regards,

Greg

0 Jeff YANG 3 months ago in reply to Gregory Kobyakov

Mastermind 8400 points

Hi Gregory,

Got it. One more question, Is there have any over temperture protect function in DS160PT801?

I can't find relative wording in datasheet.

Thanks!

Jeff

0 Gregory Kobyakov 3 months ago in reply to Jeff YANG

TI__Expert 8510 points

Hi Jeff,

There is not a specific over temperature protect function in the device. The die junction temperature can be read, as outlined in Section 4.2.15 of the Configuration Guide, and the device can be manually programmed according to the value read.

Best regards,

Greg
