TUSB1142: About the CEQ and SSEQ setting.

Bruce Dai

Part Number: TUSB1142

Hi AE,

The current Pre-Channel total and Post-Channel total are as follows.
Could you help recommend the appropriate settings for CEQ1, CEQ0 and SSEQ1, SSEQ0?

project	CEQ1	CEQ0	SSEQ1	SSEQ0	Pre-Channel total	Post-Channel total
TUSB1142	F	F	1	F	2678 mils	1387 mils

Besr Regards

2 months ago

+1 Vishesh Pithadiya 2 months ago

TI__Mastermind 48111 points

Hi,

If you are using the TUSB1142, its best to keep the post-channel loss compensated by AEQ.

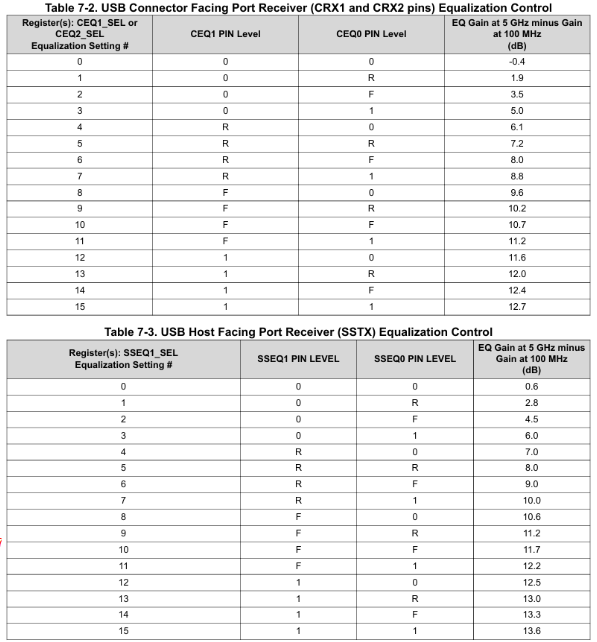

The pre-channel trace length of 2678 mils should be compensated by SSEQ of 1.9dB to 5dB depending on the loss of the board.

0 Bruce Dai 2 months ago in reply to Vishesh Pithadiya

Intellectual 780 points

Hi AE,

About the post channel, Please help suggest the the best EQ seting for us, Thanks!
