TCA9803: TCA9803 I2C Issue

ZHEN WU

Prodigy 20 points

Part Number: TCA9803
Other Parts Discussed in Thread: TCA9416, TCA9406, TS5A3160

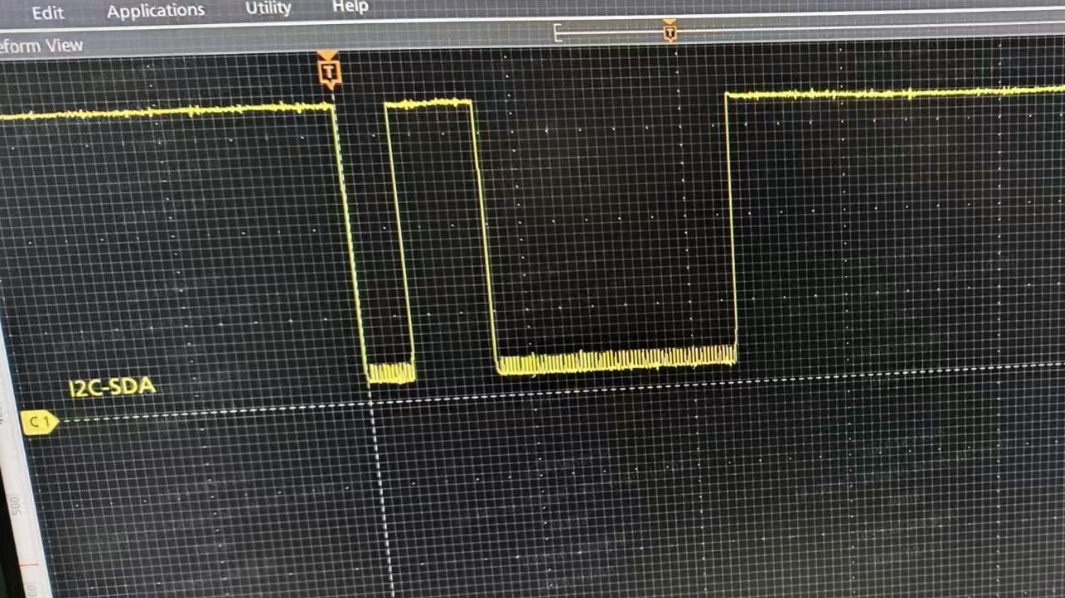

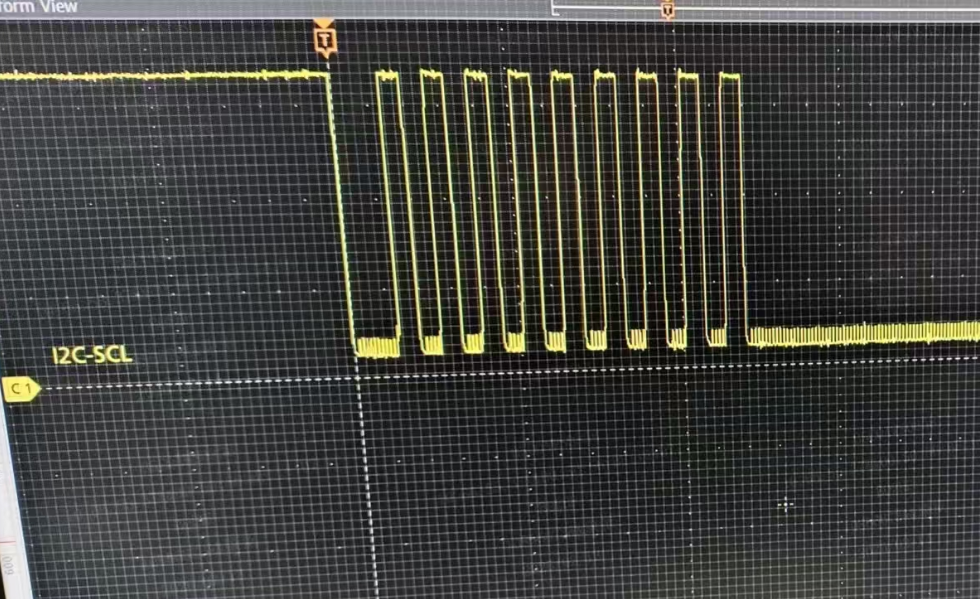

We use TCA9803 to achieve I2C level shift from 3.3V(B side) to 1.2/1.8V(A side) ,however A side I2C waveform is abnormal,especially when there are fluctuations in the low-level state.Please help troubleshoot this issue,TKS. A SIDE DATA.png B SIDE DATA.png

0 Tyler Townsend 2 months ago

TI__Guru 60178 points

Hi Zhen,

Do you have a block diagram showing all the connections on the A-side and B-side of this buffer? Any devices with rise-time accelerators in the schematic like TXS or TCA9416 / TCA9406?

Regards,

Tyler

0 ZHEN WU 2 months ago in reply to Tyler Townsend

Prodigy 20 points

Tyler，thanks for your reply，below is block diagram.

0 Jack Guan 2 months ago in reply to ZHEN WU

TI__Guru 53721 points

Hi Zhen,

The team is still looking into this and will be back soon with an update.

Regards,

Jack

0 Tyler Townsend 2 months ago in reply to ZHEN WU

TI__Guru 60178 points

Hi Zhen,

Does the TS5A3160 have pull-up resistors on the controller side and side 2?

This would interfere with the TCA9803 integrated current source on B-side.

Any protection devices on side 1 or 2 of the TS5A3160?

Any integrated pull-up resistors in the controller? What is the leakage specs of the controller?

Regards,

Tyler
