TUSB8041: TUSB8041 schematic review

Hi Matt:

  I'm working on schematic review and will be complete by tomorrow.

   I saw many USB3 muxes in the design, how many muxes in each signal  path. What is insertion loss for each mux at 5Gbps?

Best

Brian

Hi Brian

There is two USB3 muxes in each signal path to give me 4-way splitting.

Thanks

Matt

Hi Matt:

     Do you have schematic version which I can search signals ?

Best

Brian

Hi Brian

Can you open Kicad files?

Thanks

Matt

No.

Regards

Brian

Hi Brian,

I have made an interactive pdf so you can click on links and follow the paths. 8081.USB switch Texas Instruments.pdf

The USB originate from anther board yet to be updated.

The USB is connected by a 2m shielded cable. The data pins for each input are separated by a GND pins from a shared GND over both boards.

Thanks

Matt

can you accept my friendship request? I can  not attach any document here.

Regards

Brian

Hi

I think i have accepted the frend request

Hi Brian,

Done I think have sent you a private message

thanks, you for your help

Matt

I did receive your message, but I don't think you accept my friendship request .

Regards

Brian'

Hi Brian,

I have tried multiple time to accept the request but it would not work I have now invited you as a friend see if that works

Thanks

Matt

sorry, it seems we can not send any file by private message this week,  May I have your email?

Best

Brian

Hi Brain

My e-mail for this project is pcb@mscsolution.co.uk

thanks

Matt

Please check you r email.

Best

Brian

Hi Brian

Thank you for your feedback. Attached is my response. Feedback.pdf I have updated the USB switching and USB hub pages (3&7) Page 7v2.pdfPage 3v2.pdfof the schematic. If you could have a look then if the changes are ok, I will update full schematic.

Thanks for your help

Matt

I will review again.

Best

Brian

Hi Brian

Have you had a chance to look at my updated schematic?

Thanks for your help

Matt

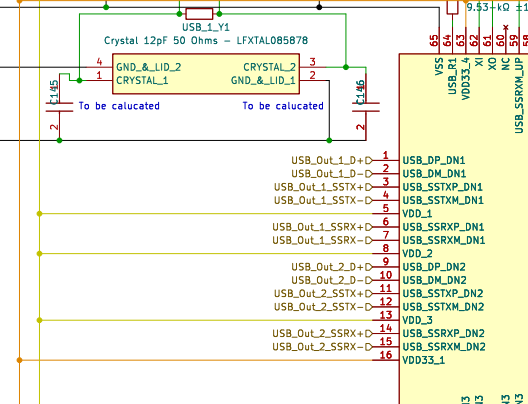

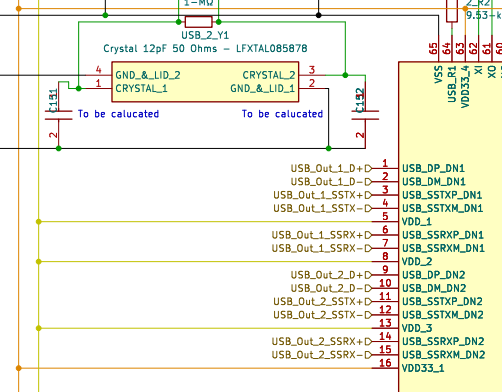

I mean you have same name for different hubs, not different port from same hub.

Best

brian

Hi Brian

Please see attached block diagram TI Block.pdf each output hub can have any one of inputs depending on the switching.

Thanks

Matt

Hi Matt:

  During PCB layout, all signals with same net name will be shorted together. So its better   to change  hub port name in schematic for different hubs.

Best

Brian

Hi Brian

I am using hierarchical labels. Each sheet labels are independent form each other.

They are connected on page 1 pile of spaghetti sorry for any confusion.

Thanks

Matt

As long as you are ok with that, it should be fine. I just remind you to pay attention for it in schematic review

Regards

Brian

Hi Brian

Thank you for your time and feedback.

1524.USB switch Texas Instruments.pdfHere is the final schematic, Do you have any concerns before I go to PCB design stage?

Thanks

Matt

I will complete review by tomorrow

Best

brian

Matt:

   1: need AC cap 100nf between TUSB1042 and mux for both TX and RX

2: what is schematic for 1st page?

3: can you draw blockdiagram?

Best

Brian

Hi Brian

Thank you for your time and feedback.

For point 1

I have added in the AC cap’s.

For point 2

I am using Kicad to make the schematics. To get multiple pages you have to use hierarchical sheets.

Then you can make hierarchical labels that then show on the master page(page1). Hierarchical labels cannot see hierarchical labels from any other sheet.

So, on Page 1 of the schematic is the linking of all the sheets together.

Hierarchical labels look like this

I do use some Global labels. They look like this

Updated schematic USB switch Texas Instruments v 22.pdf

Thanks

Matt

looks like for SS signal,  TUSB1042 to hub connection is wrong.'

It should be TUSB1042 TX to hub RX and

TUSB1042 RX to hub TX.

Fir TUSB1042, SSTX is input and SSRX is out put, does tusb1042 SSTX/SSRX is connected to USB connector?

Best

Brian

Hi Brian

Thank you for your time and feedback.

Just so I have got this correct I need to put a crossover in the RX and TX lines when linking them between IC.

USB Pathway

From USB connector (Input) > to TUSB1042I is this straight wired or do I need to put crossover in?

TUSB1042I (Output) TX connect > RX on HD3SS6126 (Input)

TUSB1042I (Output) RX connect > TX on HD3SS6126 (Input)

HD3SS6126 (Output) TX connect > RX on TUSB8041 (Input)

HD3SS6126 (Output) TX connect > RX on TUSB8041 (Input)

TUSB8041 (Output) TX connect > USB Connector (Output) is this straight wired or do I need to put crossover in?

Thanks

Matt

Hi Matt:

   HD3SS6126 is just passthrough, there is no TX or RX for MUX.

  From USB connector (Input) > to TUSB1042I should be straight wired if it is standard USB connector

   TUSB1042I (Output) TX connect to  mux to RX on TUSB8041 (Input)

    TUSB1042I (Output) T]RX connect to  mux to TX on TUSB8041 (Input).

TUSB8041 (Output) TX connect > USB Connector (Output) should be straight wired if it is standard USB connector

Regards

Brian

Hi Brian

Thank you for your time and feedback.

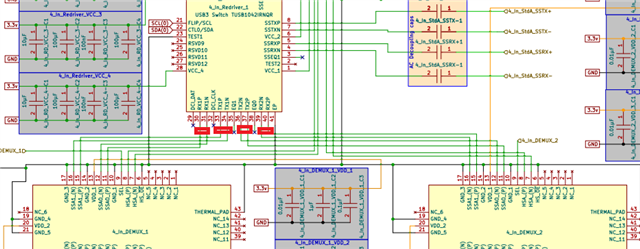

I have updated the schematic, see below. Please let me know if you have any more concerns. The changes are on page 3,4,5&6 in yellow and turquoise boxes.

USB switch Texas Instruments V 23.pdf

Thanks

Matt

I will complete review by Mon.

Best

Brian

did you connect TUSB1042 output to type-A connector?

if yes, it should be like below.

Best

Brian

Hi Brian

 Thank you for your time and feedback.

 The input to the TUSB1042 is from a USB type-A connector.

The output at the end of the chain is a USB type-B connector.

 Thanks

 Matt

where is the end of the chain? hub upstream port?

Regards

Brian

Hi Brian,

Then TUSB8041 is the end of the chain

Thanks

Matt

hub downstream port is the end of the chain?

Best

Brian

Hi Brian

 Yes, it’s connected to a USB type-B connector.

 USB Pathway

From USB type-A connector (Input) > to TUSB1042I.

TUSB1042I (Output) > Input on HD3SS6126.

HD3SS6126 output Tx & Rx on the SS data lines are crossed to TUSB8041 inputs.

TUSB8041 output goes to USB type-B connector

 Thanks

 Matt

what is TUSB8041 input and what is TUSB8041 output?

Normally TUSB8041 upstream port is input and hub downstream port is outpur.

Best

Brian

Hi Brian

 I have each of the 4 inputs using a type-A connector connecting to a DP_DNx.

Output to PC on the USB_UP port using a type-B connector.

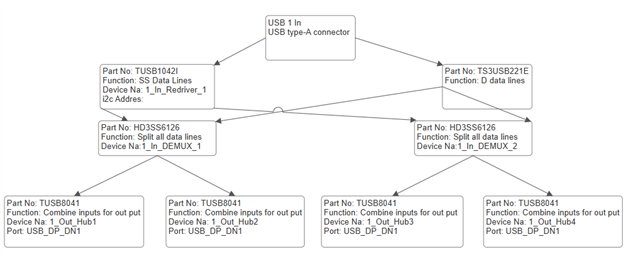

 See below diagram for USB 1 in data path.

Will this work or do I need to use a different IC

 Thanks

 Matt

it looks ok .

Best

Brian

Hi Brian,

Thank you for your feedback do I still need to remove the two caps as shown in the image below

Thanks

Matt

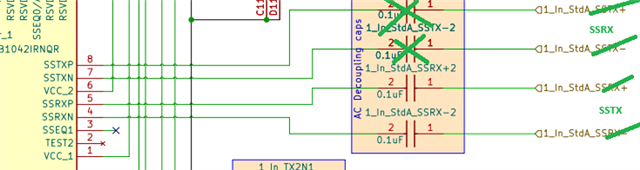

yes, need to remove cap  or change caps to 330pf on RX channel.

also need to connect 1042 SSTX to SSRX of type-A connector

           .and  connect 1042 SSRX to SSTX of type-A connector.

for TUSb1042, SSTX is input and SSRX is output.

Best

Brian

Hi Brian,

Thank you for your feedback.

 I have removed the cap from the RX channel

I have swapped 1042 SSTX to SSRX of type-A connector

The above changes are in an orange box on pages 3,4,5&6.

For TUSb1042, SSTX is input and SSRX is output I think I have already swaped them over in the Yellow Box on pages 3,4,5&6.

 Here is a new copy of the schematic

 USB switch Texas Instruments v 24.pdf

Thanks

Matt

Hi Brian,

 Thank you for your help.

Do you with to be kept up to date with the project?

Thanks

Matt
