TUSB422: DEBUG_ACC_CONNECTED bit in Power Status Register

Joel Brassfield

Part Number: TUSB422

What resistor values must be placed on the CC1 and CC2 lines in order for the TUSB422 to set its DEBUG_ACC_CONNECTED bit in the Power Status Register?

1 month ago

+1 Ryan Kitto 1 month ago

TI__Guru 52425 points

Hi Joel,

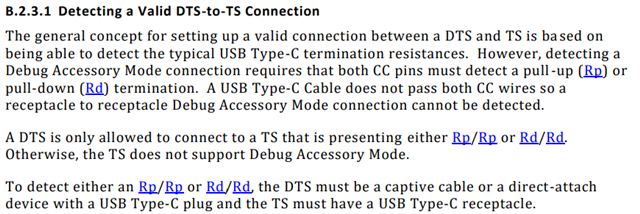

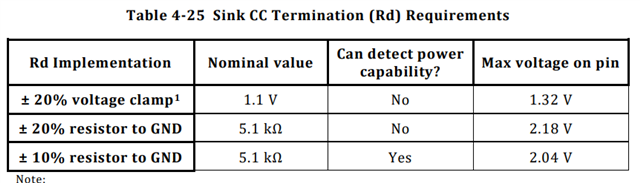

Per appendix B of the USB-C spec, CC1 and CC2 should either be PU by a value RP or PD by a value RD.

It's best to use a captive cable to connect CC1/CC2, or directly connect to the TS at the port.

Thanks,

Ryan

0 Vishesh Pithadiya 1 month ago in reply to Ryan Kitto

TI__Guru 56206 points

Hello,

Closing thread due to inactivity. If you have any follow-up questions or concerns, feel free to reply.
