TUSB2E221: DCP mode support

Koyo Asaishi

Part Number: TUSB2E221
Other Parts Discussed in Thread: TUSB2E11

Hi team,

How can TUSB2E221 support DCP mode?

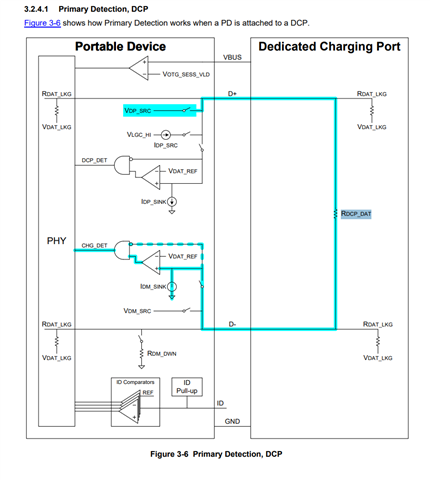

I assume 200ohm for CDP and 0ohm for DCP should be toggled but there is no GPIO if customer use USB2 PHY configuration (I2C isn't used). Please help to answer with simple block diagram if DCP is achievable for clear understanding.

Best regards
koyo

27 days ago

0 Ryan Kitto 26 days ago

TI__Guru 53420 points

Hi Koyo,

The TUSB2E221 does not support DCP functionality, only SDP and CDP functionality. The TUSB2E11 does support DCP functionality.

Thanks,

Ryan

0 Koyo Asaishi 26 days ago in reply to Ryan Kitto

TI__Intellectual 2250 points

Hi Ryan

I see TUSB2E221 can't support DCP. For laptop system point of view, can customer realize DCP if D+ and D- are shorted? They probably need to toggle 200ohm and 0ohm.

Best regards
koyo

+1 Ryan Kitto 25 days ago in reply to Koyo Asaishi

TI__Guru 53420 points

Hi Koyo,

If the customer wanted to use DCP, they could either short D+/D- together, or short them using a 200Ohm resistor.

Does the customer intend on creating a DCP port for their laptop? This will disable any USB2 functionality outside of BC1.2.

Thanks,

Ryan

0 Koyo Asaishi 25 days ago in reply to Ryan Kitto

TI__Intellectual 2250 points

Hi Ryan

Thanks for the answer. DCP is required for their internal definition but kind of DCP is achievable even though TUSB2E221 doesn't support because there is no USB communication if SoC is power off but charging is available.

Best regards
koyo
