TUSB2E221: eUSB high speed repeater sighal quality test fail, EOP width test failed

Charles (KAT) Zhang

Intellectual 1940 points

Part Number: TUSB2E221

Dear team,

My customer got one eUSB high speed repeater sighal quality test fail, could you help to check why?

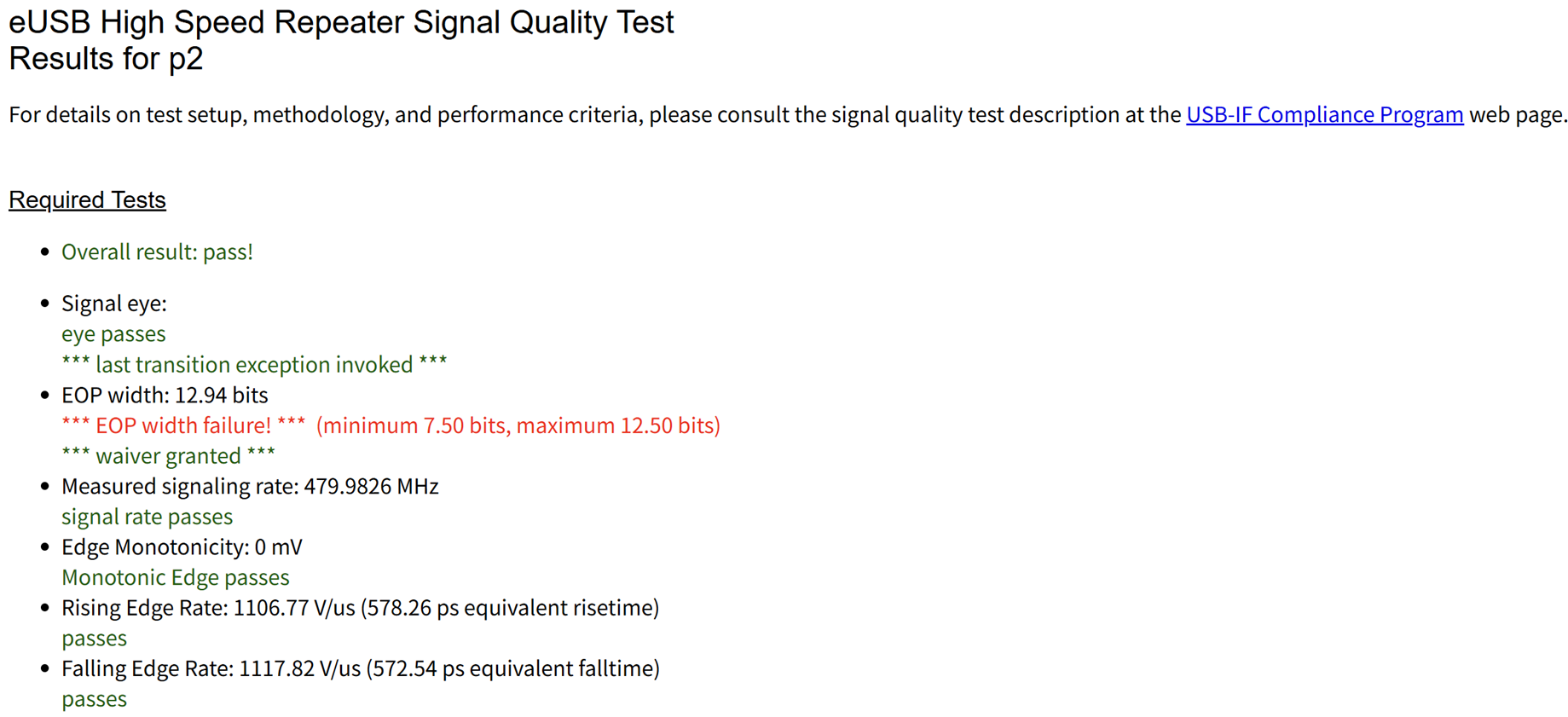

EOP width test failed for Port 2 (Type-C) and Port 4 (Type-A) during USB 2.0 testing.(FR:3/3u,1/1cycles)

Thank you:

Logs: usb2.0 (002).zip

Best,

Charles

3 months ago

0 Undrea Fields 3 months ago

TI__Genius 13100 points

Hi,

This is expected behavior with an eUSB2 repeater and is not a compliance failure.

During the translation, high-speed start-of-packet (SOP) synchronization truncation and end-of-packet (EOP) dribble can occur. The USB-IF specification permits this behavior in eUSB2 repeaters by making an adjustment to the tier budget treating a single eUSB2 repeater as equivalent to one high-speed hub tier, or two full-speed hub tiers., allowing for safe interoperability within standard USB 2.0 ecosystems.

Regards,

Undrea

0 Charles (KAT) Zhang 3 months ago in reply to Undrea Fields

TI__Intellectual 1940 points

Hi Undrea,

So should the customer get a waiver from Intel? they got this failed items...

Thank you.

Charles

+1 Undrea Fields 3 months ago in reply to Charles (KAT) Zhang

TI__Genius 13100 points

Hi Charles,

No need, there is a waiver in place. Noted in the compliance report ("Waiver granted").

Regards,

Undrea

0 Charles (KAT) Zhang 3 months ago in reply to Undrea Fields

TI__Intellectual 1940 points

Thank you Undrea, Let me check with the customer.

0 Koyo Asaishi 3 months ago in reply to Undrea Fields

TI__Intellectual 2290 points

Hi Undrea,

Please allow me to interrupt. My customer also asked similar question and your answer is very helpful. Could you give me which USB-IF document shows the specification?

Best regards
koyo

0 Vishesh Pithadiya 3 months ago in reply to Koyo Asaishi

TI__Guru 63146 points

Hi,

This information can be found in the eUSB2 specification from USBIF: www.usb.org/.../embedded-usb2-eusb2-physical-layer-supplement-usb-revision-20-specification-rev-12
