SN65DSI84-Q1: SSC_CLKIN center spread depth

Ted Xu

Hi team

SN65DSI84-Q1 supports SSC DSI CLK input function. What's the maximum center spread depth, +/-2% or +/-1%? pls double check it.

BTW, if does SN65DSI84-q1 support down spread SSC input? If yes, what's the spread depth and modulation frequency range?

Thanks

3 months ago

0 Ikram Haque 3 months ago

TI__Mastermind 31900 points

Hi Ted,

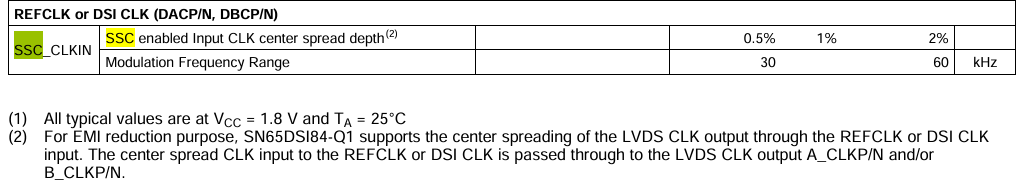

The SN65DSI84-Q1 only supports center-spread SSC for the REFCLK or DSI clock. And the spread depth supported is only 0.5 to 2% as mentioned in the datasheet.

Best regards,
Ikram

0 Ted Xu 3 months ago in reply to Ikram Haque

TI__Expert 5345 points

Hi Ikram

Would you help share your comments on below concern?

What's the maximum center spread depth, +/-2% or +/-1%? pls double check it.

The description in datasheet is not clear for center-spread mode.

Thanks

0 Ikram Haque 3 months ago in reply to Ted Xu

TI__Mastermind 31900 points

Hi Ted,

I understand your question. Please give me till tomorrow to look into this and get back to you.

Best regards,
Ikram

0 Ted Xu 3 months ago in reply to Ikram Haque

TI__Expert 5345 points

Hi Ikram

What's the update on this question?

Thanks

0 Ikram Haque 3 months ago in reply to Ted Xu

TI__Mastermind 31900 points

Hi Ted,

The specification here is for +/- 2% for center spread. Also note that the SSC depth should be selected based on what the panel LVDS input can tolerate.

Best regards,
Ikram
