DS80EP100: SLVS-200 redriver

Jingguo Wang

Part Number: DS80EP100

Hi expert,

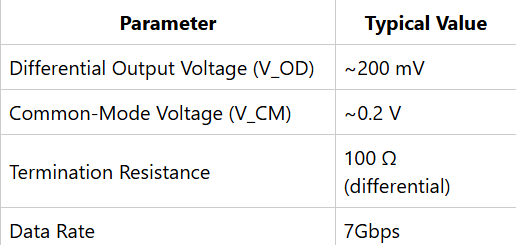

I am found a suitable deive for SLVS-200(Scalable Low Voltage Signaling - 200 mV) cable compensation, the SLVS-200 signal parameters are as below:

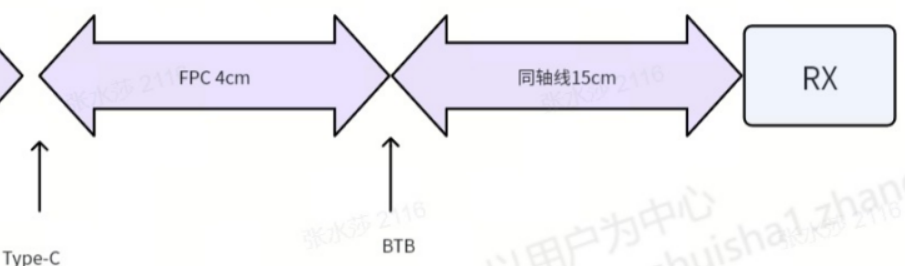

For the system, the IC need to cover the cable loss from type-C interface to SOC RX side. and it can be placed in type-C interface side or RX side, and the compensation capacity need above 6dB.

My question is as below:

if the DS80EP100 can meet these requirement? if Yes, do we have a design guide?
If no, do we have any other device can be used in the application?

Jingguo

2 months ago

0 Michael Ikwuyum 2 months ago

TI__Guru* 78042 points

Hi Jingguo,

Today is a holiday. Please help give until next week for some feedback, thanks.

Best Regards,

Michael.

0 Matt Smith 2 months ago

TI__Genius 17356 points

Hi Jingguo,

This device was designed for LVDS, LVPECL, and CML signals which have higher differential voltages than what you are describing with SLVS-200. However, this device seems like it would work for your application since the eye diagram are at ~240mV. We do not have a design guide or a dedicated device for SLVS-200.

Regards,

Matt

0 Jingguo Wang 2 months ago in reply to Matt Smith

TI__Expert 3580 points

Hi Matt,

So it can cover the 6dB signal loss?

Jingguo

0 Matt Smith 2 months ago in reply to Jingguo Wang

TI__Genius 17356 points

The 6dB is a typical spec and it was measured with a 1V input swing, so this is not guaranteed. However, this is the best device in our LVDS portfolio for this application.

Regards,

Matt
