TPD4EUSB30: Footprint

Marvn Arcangel

Part Number: TPD4EUSB30

Hi Experts,

There are two USON (DQA) package drawing on the datasheet: DQA0010A and DQA0010B. The generic package view shows the DQA0010B version. Is it safe to say that this was the latest revision of the USON (DQA) package and should consider following the DQA0010B in land pattern generation?

Thanks!

Marvin

1 month ago

0 Leah Jones 1 month ago

TI__Intellectual 1460 points

Hello Marvin,

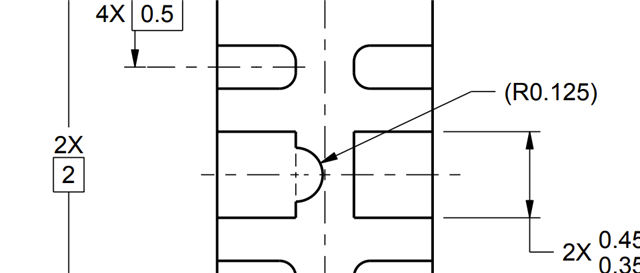

This is a multi source manufacturing part. The A and B refer to the differences in the manufacturing sites. As seen below, there is a pad difference in both parts. This should not matter as it will be grounded, so it should be alright either way, and you should continue as normal.
