THVD2410V: Schematic Review - THVD2410VDRCR

Napa Prasad

Prodigy 120 points

Part Number: THVD2410V

Hii,

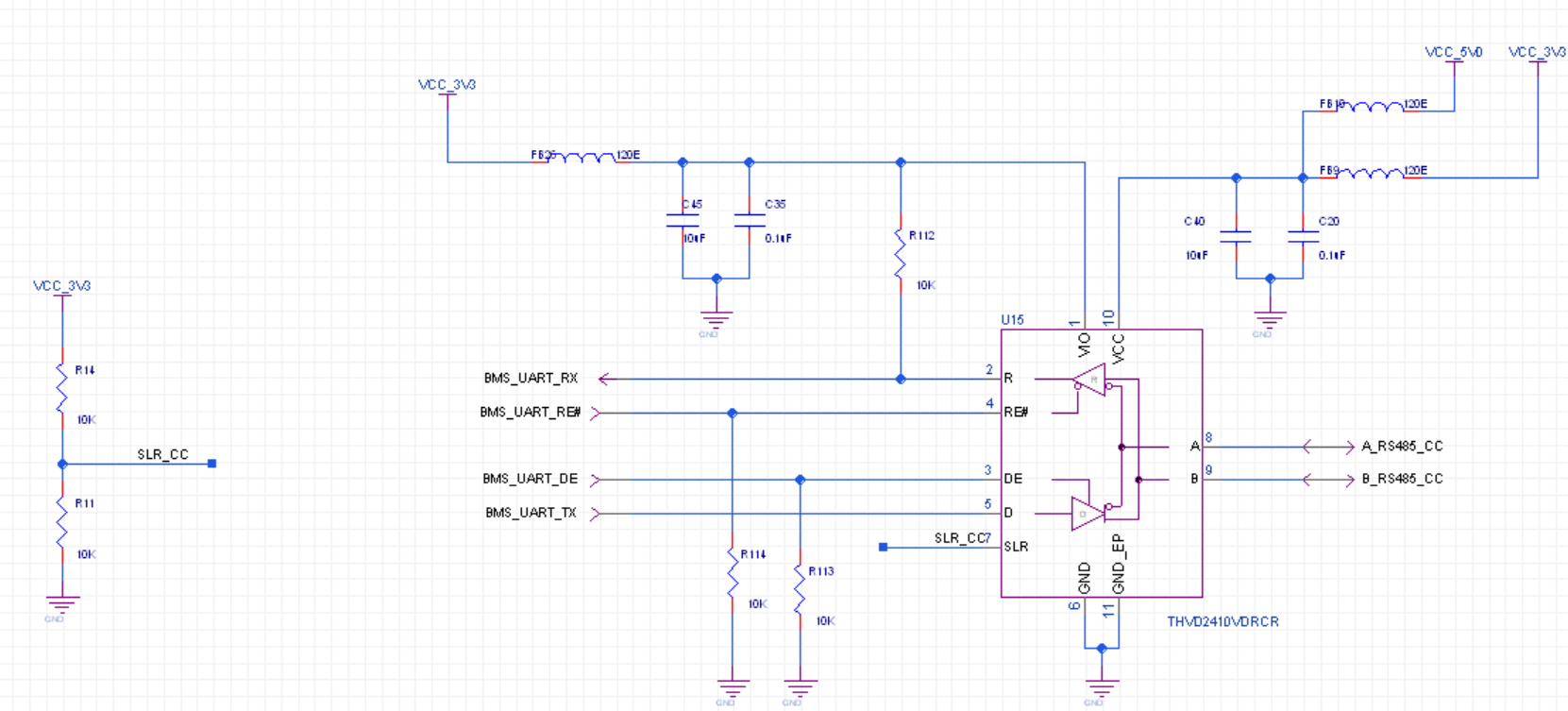

Please find the attached Schematic Picture & let us know your thoughts on this

25 days ago

0 Napa Prasad 25 days ago

Prodigy 120 points

Please note that R14, R11, FB10 are made NS

0 Ethan White 25 days ago in reply to Napa Prasad

TI__Intellectual 2210 points

Hi Napa,

I don't see any glaring issues with this schematic. I recommend reading this article we have on bus termination to help determine whether you need it for your system.

-Ethan White
