TPD4E05U06DQR footprint

Sam Pan

Expert 3860 points

Hi Team,

For TPD4E05U06DQR, in the footprint some pin pad are arc-shaped while some are rectangle shaped.

Is it must be to follow the arc-shaped and rectangle shaped pad as the footprint showed?

Is all pad with rectangle shaped okay? Thanks

over 11 years ago

0 Scott Cummins over 11 years ago

TI__Mastermind 31655 points

Hi Sam,

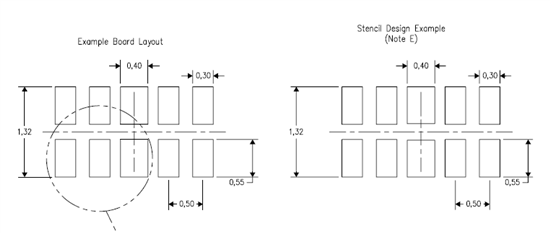

The drawing you posted is actually the mechanical drawing for the part itself. Below (and on page 17 of the datasheet) you will find the recommended footprint, which only uses rectangular pads.

Please let us know if you have additional questions.

Regards,

0 Sam Pan over 11 years ago in reply to Scott Cummins

TI__Expert 3860 points

Hi Scott,

Thanks, I will feedback to customer.
