Import a CAD file to Altium

Ramin Belivan

Prodigy 120 points

Other Parts Discussed in Thread: TIDA-00287

Appreciate if the forum/ TI technical support could say how can import a refrence design DSN file to Altium.

I want this "2-Port USB 3.0 Hub Reference Design" but my Altium does not recognize the file.

Thanks

Ramin

over 10 years ago

0 Michael Peffers over 10 years ago

TI__Mastermind 20820 points

Hi Ramin,

Use the import wizard under the file menu and follow the prompts for importing the .dsn into allegro.

0 Ramin Belivan over 10 years ago in reply to Michael Peffers

Prodigy 120 points

Hi Michael

Thanks for the prompt reply.

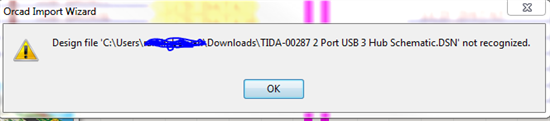

I am using Import wizard for orcad files in Altium 15 and I get this message:

Regards,

Ramin

0 Michael Peffers over 10 years ago in reply to Ramin Belivan

TI__Mastermind 20820 points

Hi Ramin,

What version of cadence is the file? Newer versions of cadence do not import into Altium so you will have to down convert it. I read through the Altium wiki on importing .DSN files to find this information.

0 Ramin Belivan over 10 years ago in reply to Michael Peffers

Prodigy 120 points

Actually this is the CAD file that I downloaded from this page:

http://www.ti.com/tool/TIDA-00287

there is no version on them and I do not know how to open and convert them.

-Ramin
