LMH1980 - Sync slice level for tri-level sync level

Kawai

Guru 19785 points

Other Parts Discussed in Thread: LMH1980

Hello Team,

Please allow me to confirm the slice level for LMH1980.

I am understanding the slice level is +70mV above V_sync clamp level.

Is this +70mV threshold applied to tri-level sync, too ?

Best Regards,

Kawai

0 Kawai over 10 years ago

Guru 19785 points

Hello Team,

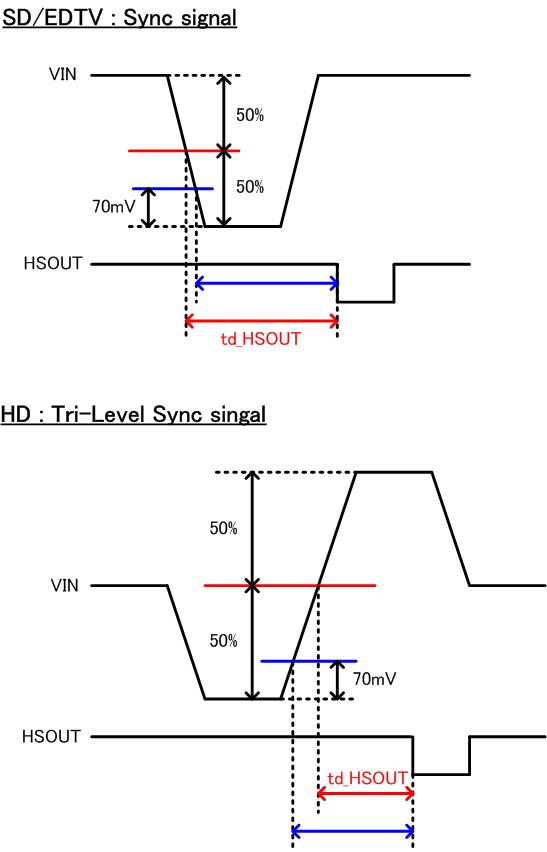

I am understanding the LMH1980 slice timing as below. (blue line as threshold)

Is my recognition correct ??

Your prompt response is greatly appreciated.

Best Regards,

Kawai

0 Kawai over 10 years ago in reply to Kawai

Guru 19785 points

Hello,

It seemed my recognition was incorrect.

I had the answer in the other post.

e2e.ti.com/.../1570880

Thanks,
Kawai
