/PWRON output of TUSB2046BIVFR is always inactive

John11513

Other Parts Discussed in Thread: AM3354, TUSB2046B

Hi,

A question about TUSB2046BIVFR: why its /PWRON outputs are always inactive (high) though all of its /OC inputs are high. The design is completely same as figure 13 schematic, self-powered hub, individual port power management configuraion. Could you please help to explain what is the possible cause that result /PWRON output always inactive?

Thank you,

John

over 10 years ago

0 Elias Villegas M. over 10 years ago

TI__Guru* 76130 points

Moving to the correct forum.

0 Elias Villegas M. over 10 years ago

TI__Guru* 76130 points

The PWRONn outputs are controlled by the USB Host, do you have a USB connection?
Can you share your schematic?

0 John11513 over 10 years ago in reply to Elias Villegas M.

TI__Expert 5720 points

Thank you for reply. The HUB has been connected to USB1 port of AM3354. Here is the schematic.

0 Joel Jimenez0 over 10 years ago in reply to John11513

TI__Mastermind 18655 points

Hello John,

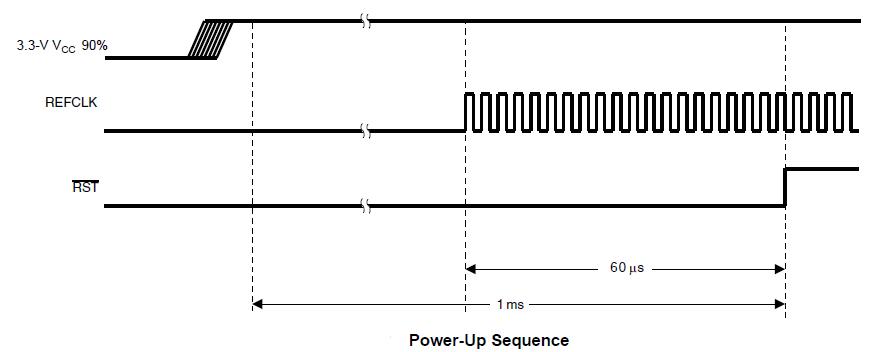

Does your Hub meet the power-up requirement?, you should held RESET terminal it low during 100 µs to 1 ms at power up (when 3.3-V VCC reaches its 90%) and then release it.

The figure below shows an solution for the reset terminal that is used in our reference design.

Also, the TUSB2046B does not have internal pull-up resistors on the OVRCUR/ inputs and these are required.

Regards

0 John11513 over 10 years ago in reply to Joel Jimenez0

TI__Expert 5720 points

Hi,

Thank you. Yes, indeed power-up sequence not meet those requirement 100%. Actually the RESET is controled by CPU through a SPI-to-GPIO IC. RESET is high on power-up, after CPU running, application software issue a /RESET signal as long as 25ms. I am not sure is it meet the requirement?

Thank you!

John

0 John11513 over 10 years ago in reply to Joel Jimenez0

TI__Expert 5720 points

hi,

Have tested your proposed reset circuit, no effect.
For host side driver, they are using our demo, engineering name: AM335X_StartterWare_02_00_00_07

Thank you,
John

0 Joel Jimenez0 over 10 years ago in reply to John11513

TI__Mastermind 18655 points

Hello John,

Check the status of the SUSPND output. The TUSB2046B will go into the suspend state, and disable its /PWRON outputs, after no more than 10 ms of bus inactivity on all its downstream ports.

Provide a scope capture showing VCC, RESET, XTAL1 power up sequence.

Are the OVRCUR inputs pulled high?

Is the TUSB2046B being enumerated? or Is the customer getting an error message?

Regards.
