TUSB211 / D1x must be shorted to D2x

K.Yaita

Other Parts Discussed in Thread: TUSB211

Hi Team,

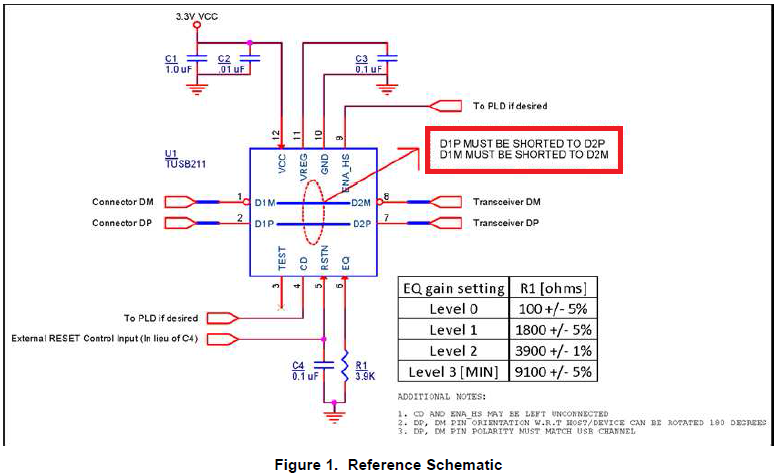

The reference schematic shows "D1x must be shorted to D2x" as the following but my customer concern if it could be a redriver function.
May I have your comment?

In addition, is the above reference schematic the same as TUSB211EVM?

Best Regards,
Yaita

over 9 years ago

0 Diego Cortes over 9 years ago

TI__Mastermind 36085 points

Hello Yaita-san,

This continuity is in order to have a risk free system design of a complete USB channel, so the TUSB211 does not break the continuity of the DP/DM signal path. And also the EVM has the same configuration.

Regards,

Diego.

0 Steve Riley over 9 years ago

Prodigy 60 points

How does the TUSB211 condition the signal if it's shorted across it?

0 Diego Cortes over 9 years ago in reply to Steve Riley

TI__Mastermind 36085 points

Hello Yaita-san,

Unfortunately the information you requested it's confidential, I can only say that it is related to the bi-directional nature of the USB2 channel.

Regards,
Diego.

0 Steve Riley over 9 years ago in reply to Diego Cortes

Prodigy 60 points

I'm about to spend about $40,000 on a run of boards with this part, so I'd kind of like to know that it's going to work.

0 Diego Cortes over 9 years ago in reply to Steve Riley

TI__Mastermind 36085 points

Hello Steve,

Please send me an email to diego.cortes@ti.com
Regards,
Diego.

0 Alpha Han over 9 years ago in reply to Diego Cortes

TI__Expert 3750 points

Hi, Diego:
Just want to know if can ask customer disconnect D1x and D2x in PCB trace. The target is to make TUSB211 as must use not optional in some projects,

0 Diego Cortes over 9 years ago in reply to Alpha Han

TI__Mastermind 36085 points

Hello Han,

The input and output lines have to be connected, as the datasheet establishes, the D1P and D2P terminals must be shorten, as well as the D1N and D2N.

Regards,
Diego.
