TIDA-00630 TI Type-C Dock / TPS2546

K.Yaita

Other Parts Discussed in Thread: TUSB8041, TPS2546

Hi Team,

I would like to ask about TIDA-00630.

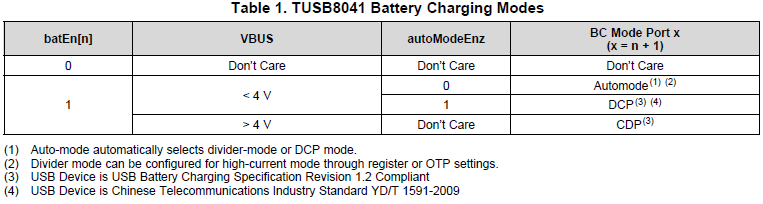

I believe TUSB8041(USB3.0 Hub) supports battery charging as the following.

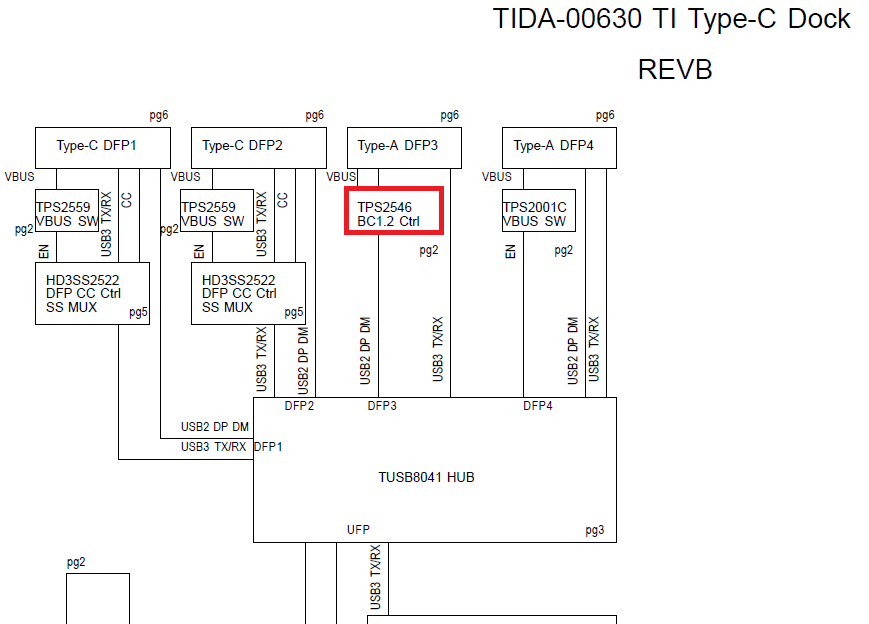

On the other hand, TPS2546 is also mounted with TUSB8041 in TIDA-00630(reference design).
Could you tell me the background why TPS2546 is also used?

Your support would be appreciated.

Best Regards,
Yaita/ Japan disty

over 9 years ago

0 K.Yaita over 9 years ago

Guru 29720 points

Could you support me please?

Best Regards,
Yaita

0 Diego Cortes over 9 years ago in reply to K.Yaita

TI__Mastermind 36085 points

Hello Yaita-san,

I am sorry for the delay, You are right, the HUB already has BC, so in theory there is no need to use the TPS, however I am not sure why the design includes this extra TPS, I suppose that the BC feature is disabled on the HUB and implemented externally, but I need to confirm with the engineer who designed the board, please give me extra time to get a response from him.

Regards,

Diego.

0 K.Yaita over 9 years ago in reply to Diego Cortes

Guru 29720 points

Hi Diego-san,

Thank you always for your support!
Yes, my customer wants to clarify it.
I am looking forward to your reply.

Thanks and Best Regards,
Yaita

0 Diego Cortes over 9 years ago in reply to K.Yaita

TI__Mastermind 36085 points

Hello Yaita-san,

The PCB designer decided to use the TPS2546 due to its wider range of battery charging schemes, in comparison with the TUSB8041.

Regards,
Diego.

0 K.Yaita over 9 years ago in reply to Diego Cortes

Guru 29720 points

Hi Diego-san,

Thank you for your support.

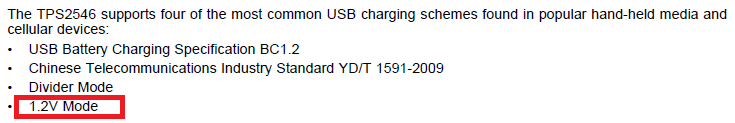

It seems TPS2546 supports "D+/D- 1.2V Mode" although TUSB8041 doesn't.

(datasheet Page.16)

Is it the primary reason for adopting TPS2546?

Best Regards,
Yaita
