Hi All,

I would liketo use TPD4S014 without MCU supervision. So I want to connect ACK output directly to EN input.

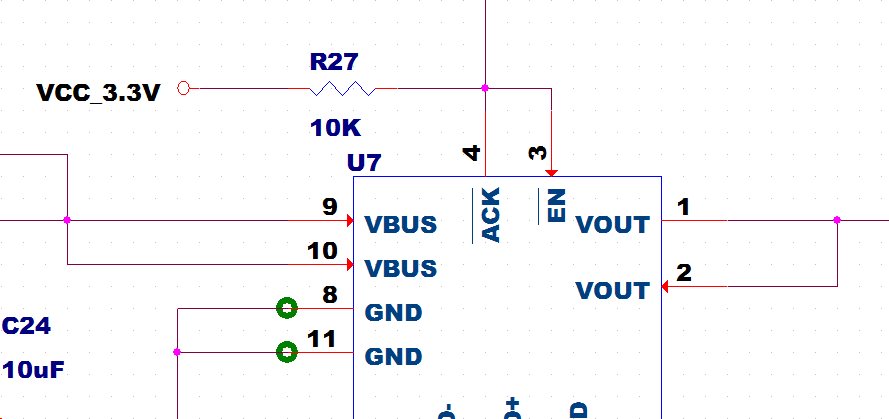

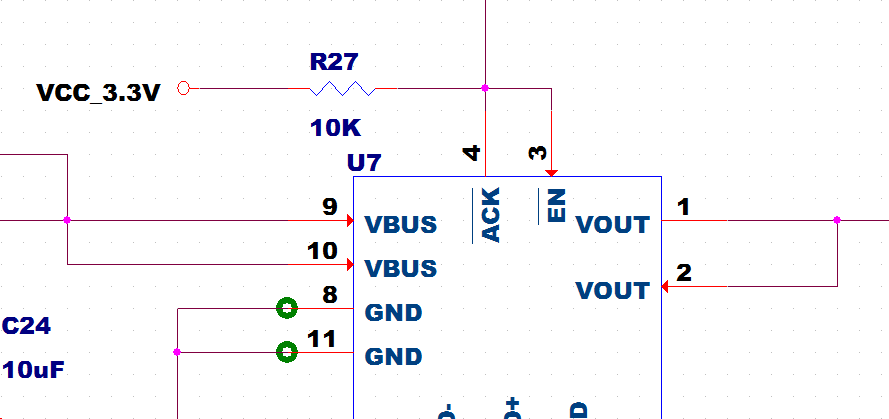

Is it gonna work? Please explain. See attached picture as the explanation.

Kind regards,

Andrei Zinenko

over 10 years ago

0 Guy Yater over 10 years ago

TI__Genius 12190 points

Hi Andrei,

I don't see why this would not work. But, I also do not see what functionality it will add. When there is under voltage or over voltage, the VBUS switch disables regardless of the state of /EN. I recommend tying /EN to ground and leave /ACK not connected.

Regards,

0 Andrei Zinenko over 10 years ago in reply to Guy Yater

Intellectual 710 points

Hi Guy,

Thank you for response. I still would like to use TPD4S014 VBUS protection functions. So when VBUS is ok and ACK goes down this will enable VOUT. On other side I will also sense ACK with MCU for my application to detect the charge state but not controlling it. My device is battery powered. So it could be over discharged. In this case my VCC_3.3V will disappear. And if charger then be connected what will happen? If my system be able to re-charge? In this state ACK and EN will floating with no voltage.

Kind regards,
Andrei Zinenko

0 Guy Yater over 10 years ago in reply to Andrei Zinenko

TI__Genius 12190 points

Hi Andrei,

If /EN is tied to ground, then it should charge with a charger connected. This should also be the case with /ACK tied to /EN as you describe it.

Regards,

0 Andrei Zinenko over 10 years ago in reply to Guy Yater

Intellectual 710 points

Thank you.

Kind regards,

Andrei Zinenko
