Simulation TS3USB221 High-Speed USB 2.0

Sanjay Bidla
Prodigy 20 points
Other Parts Discussed in Thread: TS3USB221

Hi All

I am looking for library files for TS3USB221 High-Speed USB 2.0. The files can be for LT spice, Multisim, etc. I would like to test the IC in one of my project.

Let me know if some one have it.

Regards

Sanjay

  • 0
    TI__Mastermind 45565 points

    Sanjay,

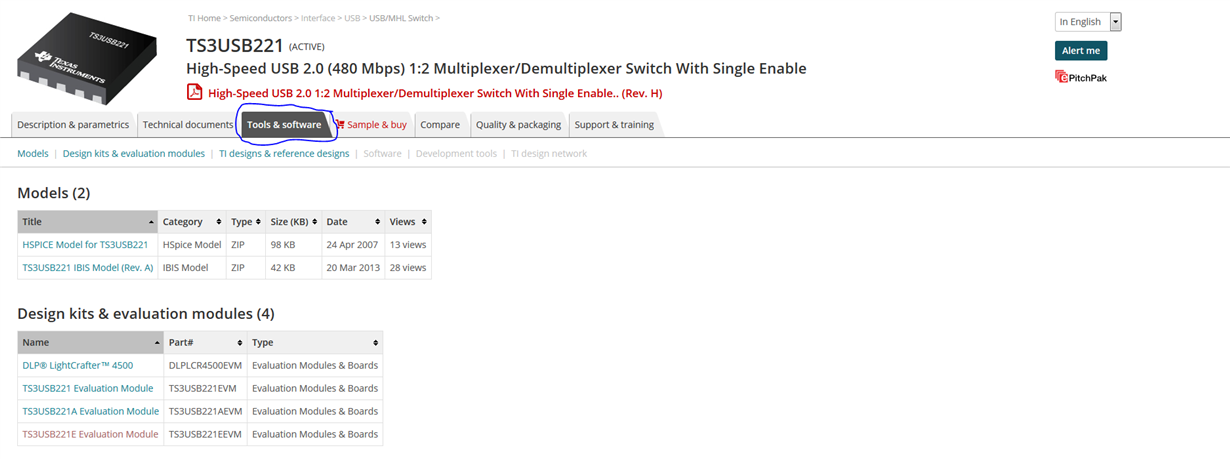

    You can find the HSPICE and IBIS models fro the TS3USB221 by clicking on the tools and software tab on the product page.

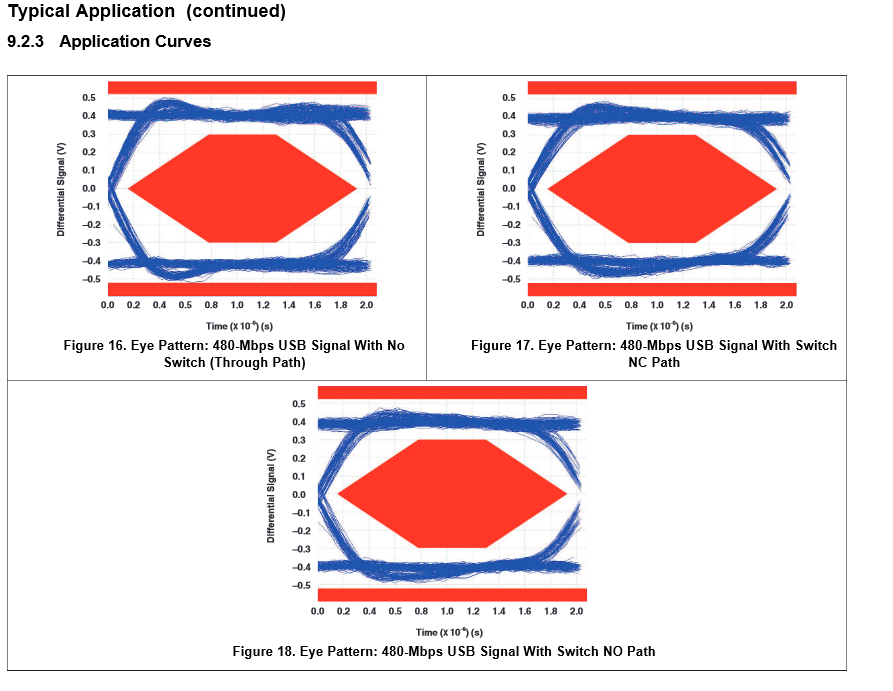

    The TS3USB221 is a passive device that can ideally be modeled as a 0ohm wire.  The parasitics come from the on state resistance (Ron) and input capacitance (Con) of the signal switch.  You can see from the testing below that there isn't really a difference in the 480Mbps signal passing through the test board with and without the switch.

    Thank you,

    Adam

  • 0 in reply to Adam Torma
    Prodigy 20 points

    Hi Adam

    Thanks for the files but unfortunately I cannot use them. I need library files/models for LTspice.

    Sanjay
