TUSB1310A USB 3.0 Transceiver Query

Kamesh Lakhwani6

Other Parts Discussed in Thread: TUSB1310A, TUSB1310

Hi,

I am using TUSB1310A transciever IC in my board. This is a Add on Board and is connected through a HSMC Connector to the host board having FPGA.

I was going through TUSB1310 implementation guide (SLLU123). For the PIPE Connection it is given that "External source series termination resistors are not required if the interface is kept to less than two inches in length with an impedance of 50 Ω ±10%." Below are the queries regarding this:

1) I am not sure of the length of signals on host board, so i should keep series resistors..right ?

2) For which signals should i keep series resistors ?

3) What will be the location of these series resistors on board?

Please reply asap..

Regards,

Kamesh Lakhwani

over 9 years ago

0 Kamesh Lakhwani6 over 9 years ago

Intellectual 765 points

awaiting your response...

0 Gerardo over 9 years ago in reply to Kamesh Lakhwani6

TI__Genius 11280 points

Hello Kamesh,
Please see the answers below:
1) Yes, It's correct.
2) For all the PIPE interface
3) Please place the resistors near to the connector.

Regards,
Gerardo

0 Kamesh Lakhwani6 over 9 years ago in reply to Gerardo

Intellectual 765 points

Hi Gerardo,

Thanks for the reply. Furthermore...

1) Do we need to keep all resistors near the Connector only?? as series resistors are kept near the source. So for TX signals, the transceiver will be the source while for RX signals it will be load /destination.

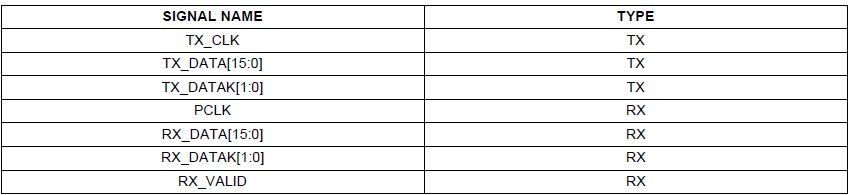

2) We are considering below PIPE signals for which we need to keep series resistors, do any other signals(except below signals) of PIPE interface should have series resistor ?
