DP83867 magnetics : 10/100Base use only

Takahiro Ogo

Other Parts Discussed in Thread: DP83867IR

Hi

My customer is considering DP83867IR for their platform in the future.
One of all their product is only required 10/100Base transmission. (not use 1000Base-T)

Plsase let me know about the magnetics.

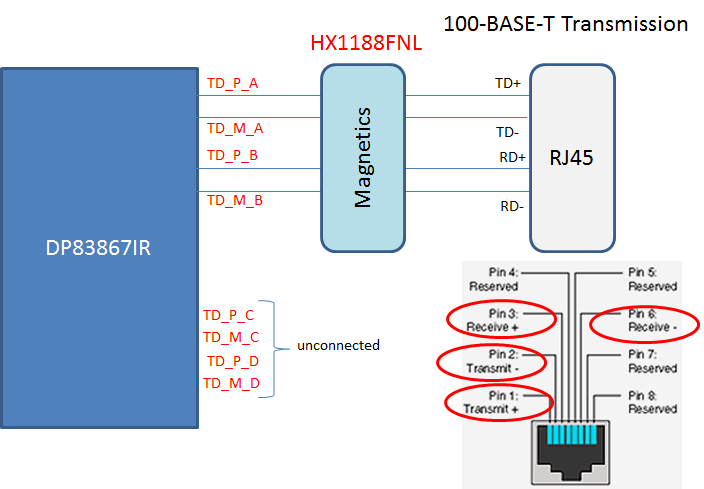

My customer will use a HX1188FNL. Is there a problem? or Could you recommnend anything magnectics?
I couldn't find this requrird specfication on datasheet.

Best Regards,
Taka

over 9 years ago

0 Patrick OFarrell over 9 years ago

TI__Mastermind 31600 points

Taka,

We have seen the Pulse HX1188 used with success in applications with our other PHYs. It should be OK.

For this application, I would recommend strapping the DP83867IR so that it only advertises 10/100 capabilities via Auto-negotiation. This is accomplished by strapping SPEED_SEL1 = 1 and SPEED_SEL0 = 1.

Patrick

0 Takahiro Ogo over 9 years ago in reply to Patrick OFarrell

Genius 5940 points

Hi Patrick,

Thank you for your kind support !
I understood.

Best Regards,
Taka
