Test Pattern of SN65DSI84

Nao

Other Parts Discussed in Thread: SN65DSI84

HI, all

I have question about test pattern of SN65DSI84.
I know the SN65DSI84 is able to be outputted test pattern, when we set CHA_TEST_PATTERN = 0x10.
Is SN65DSI84 possible to be outputted another test pattern?

Regards,
Nao

over 10 years ago

0 Joel Jimenez0 over 10 years ago

TI__Mastermind 18655 points

Hello Nao,

The DSI84 has only one pattern available.
Let me know your questions or comments.

Regards

0 Nao over 10 years ago in reply to Joel Jimenez0

Genius 4905 points

Hi, Joel

Thank you for your quick reply.
I don't have LVDS panel, so I can't be confirmed in the image now.
Please attach the picture of test pattern, if you have it.

Regards,
Nao

0 Nao over 10 years ago in reply to Nao

Genius 4905 points

Hi, Joel

Our customer provide me with the test pattern image on their LCD panel.
I think this test pattern is not good, because left side red area is very thin.
Is this an expectant test pattern from pattern generator in SN65DSI84?

Regards,
Nao

0 Nao over 10 years ago in reply to Nao

Genius 4905 points

Hi, Joel

I appreciate your feedback on this.

Regards,
Nao

0 Joel Jimenez0 over 10 years ago in reply to Nao

TI__Mastermind 18655 points

Hello Nao,

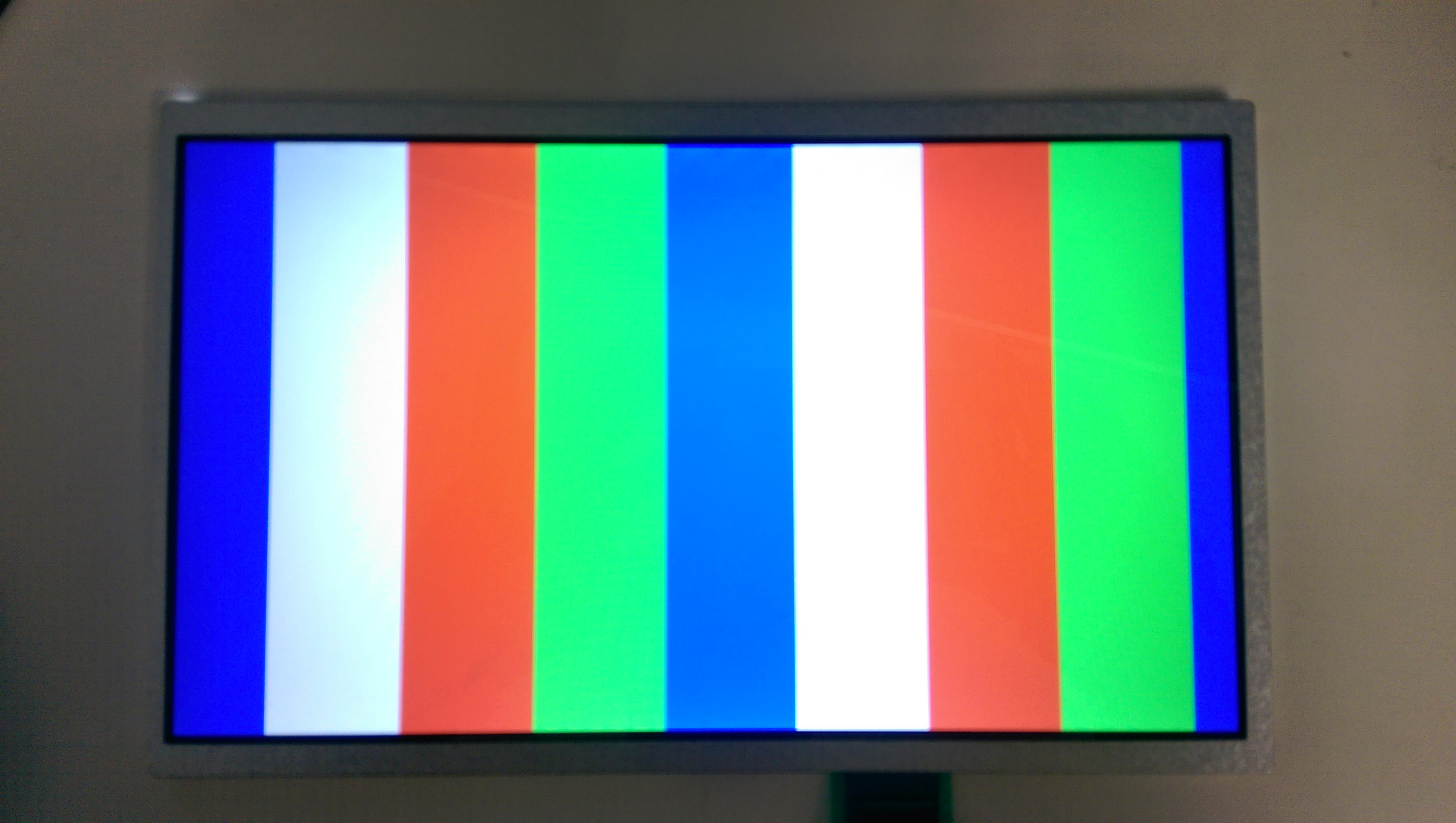

The picture below shows a 1024x600 LVDS panel with the pattern mode enabled. As you can see, the customer's panel has gray bars instead of white bars It seems that they need to adjust the LVDS panel parameters, try changing the HSync Pulse Width.

Regards

0 Nao over 10 years ago in reply to Joel Jimenez0

Genius 4905 points

Hi, Joel

Thank you for your reply.
I understand it. Please close it.

Regards,
Nao
