Directivity of HD3SS3220 CC1/CC2/DP/DM with connector

Shu-Cheng LIN

Guru 11785 points

Other Parts Discussed in Thread: HD3SS3220

Hi Sirs,

Sorry to bother you.

We have use HD3SS3220, One question need confirm.

At datasheet page 26,

CC1 link connector A5 and CC2 link connector B5. Intel connector spec are A5 (CC2), B5 (CC1)

DM link connector B6 and DP link connector B7. Intel connector spec are B6 (D+), B7 (D-)

I think follow TI application schematic is OK but still need confirm it.

So could you please help check again?? Thanks!!

over 9 years ago

0 Diego Cortes over 9 years ago

TI__Mastermind 36085 points

Hello,

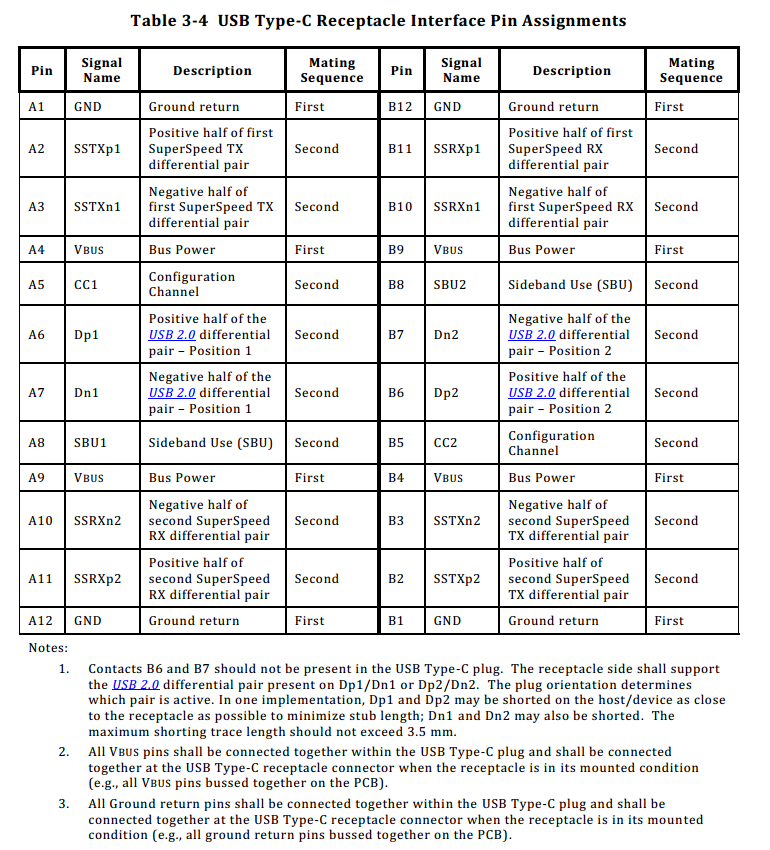

Please follow the TI application, it is the same as the Type C specification, as you can see in the following table (Type-C Specification release 1.1, page 50):

Regards,

Diego.

0 Shu-Cheng LIN over 9 years ago in reply to Diego Cortes

Guru 11785 points

Hi Diego,
Thanks for your reply.
My question is why TI HD3SS3220 typical application CC1 is link to B5?? CC2 is link to A5?? DM is link to A6/B6 ??
DP is link to A7/B7??
Should we follow????

0 Diego Cortes over 9 years ago in reply to Shu-Cheng LIN

TI__Mastermind 36085 points

Hello

My apologies, this is an error on the datasheet that must be corrected. Please follow the Type-C specification.

Regards,

Diego.
