MLVDS receiver not work

Xiang Chao

Intellectual 360 points

hi all,

I am using SN65MLVD201D to drive one 25MHz clock to many destinations.

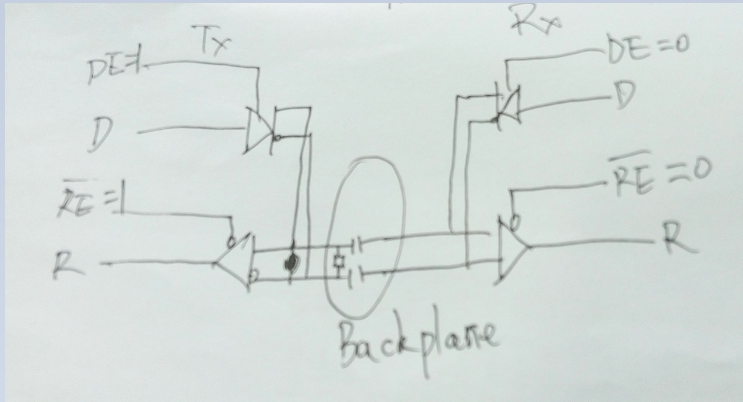

As in the picture, at the rx side, we can get the clock input about 150mvp-p, but the R pin get nothing.

I really can't find anything wrong in the system.

Any advice will be highly appreciated!

best regards

Xiang Chao

over 9 years ago

0 Elias Villegas M. over 9 years ago

TI__Guru* 76130 points

Moving to high speed interface forum.
Regards

0 Gerardo over 9 years ago

TI__Genius 11280 points

Hello Xiang,

Please send schematics and scope's captures

Regards,

Gerardo

0 Lee Sledjeski over 9 years ago in reply to Gerardo

TI__Mastermind 43795 points

From the picture I can not tell, but it is important for most backplane applications to have a termination resistor at both ends to minimize any transmission line stubs created by the multiple device loads.

Regards,

Lee
