TPS65982 Application Customization Tool / DP Hot Plug Detect

K.Yaita

Hi Team,

I would like to assign GPIO4 pin for "HPD TX/RX (bidirectional)".

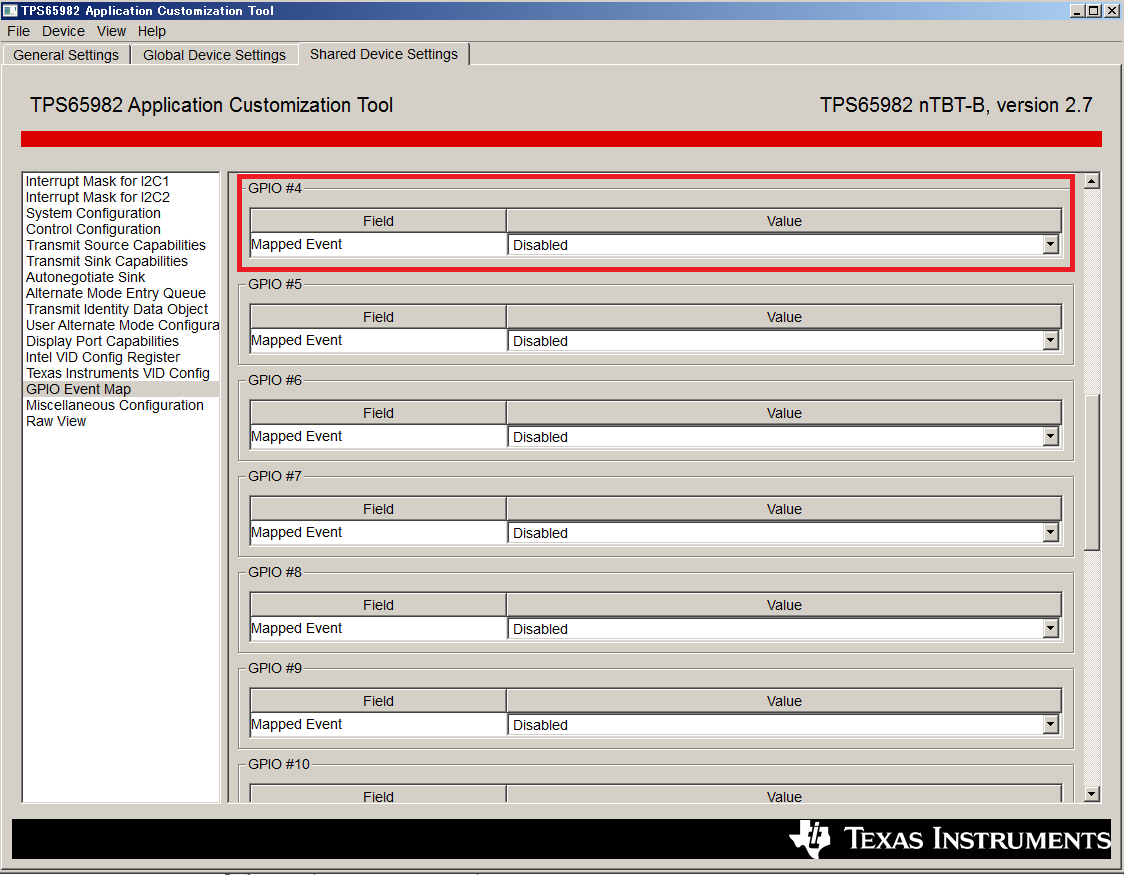

If so, should I select "Disabled" for GPIO4 as the following?
I couldn't catch which value should be selected.

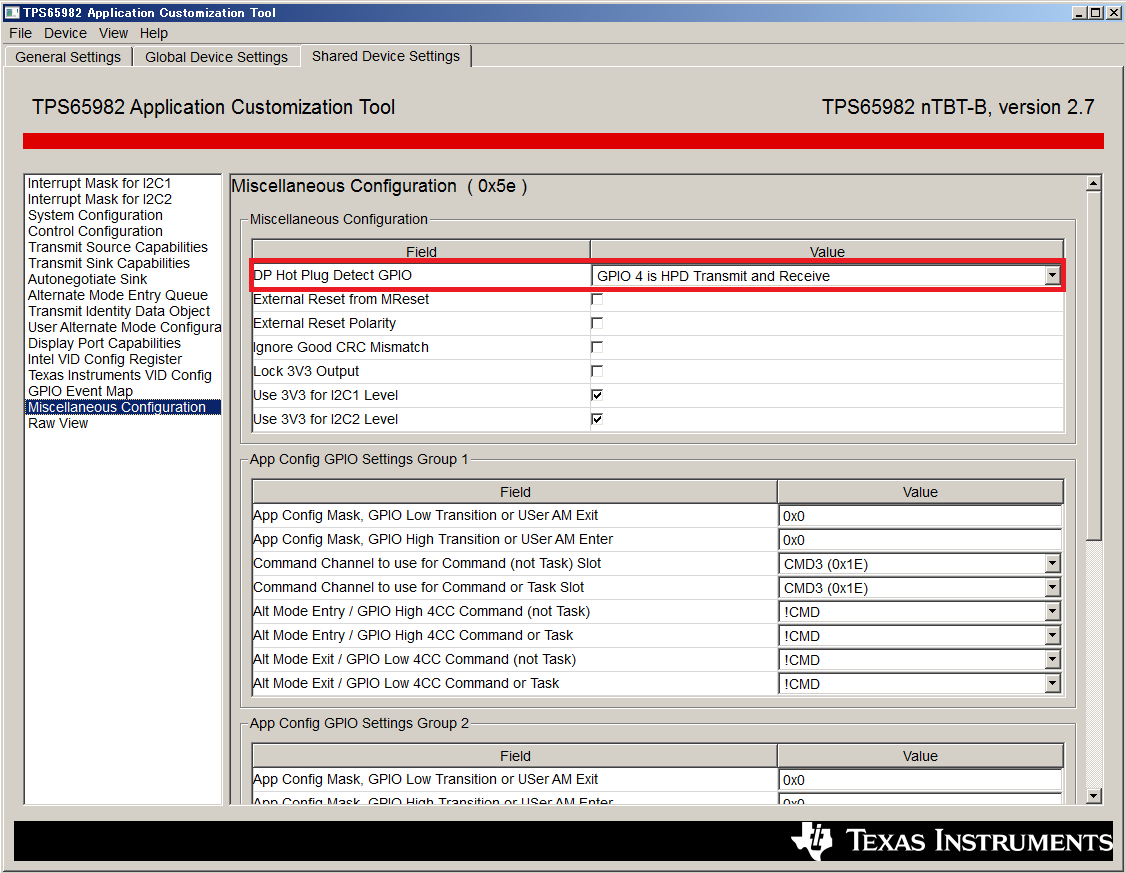

I selected "GPIO 4 is HPD Transmit and Receive" in "Miscellaneous Configuration" as the following in this case.

Best Regards,
Yaita / Japan disty

over 9 years ago

0 Arun Menon over 9 years ago

TI__Expert 6505 points

Hi,

You can use 'output Enabled with No Event' instead of disabled for GPIO4 settings. You can select the GPIO4 for HPD Rx & Tx in Miscellaneous Configuration as you have shown above.

Regards,

Arun

0 K.Yaita over 9 years ago in reply to Arun Menon

Guru 29720 points

Hi Arun-san,

Thank you for your support.
I understood I should select "Output Enabled Without Event".

Best Regards,
Yaita
