DS90UB960 0f INTB

kenshow

Genius 3725 points

Hi,

Is LED circuit of INTB on UB960EVM correct?

INTB pin is Open-Drain with Pull-up 4.7 kΩ to VDDIO. However, the EVM is Pulled down.

Regards,
Kenshow

0 Dac Tran over 9 years ago

The INTB pin has a 4.7K pullup on EVM.

0 kenshow over 9 years ago in reply to Dac Tran

Genius 3725 points

Hi,

Do you mean internal pull up in the chip?

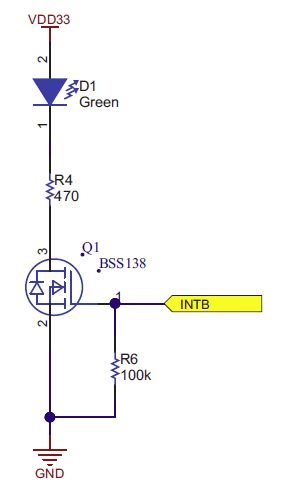

I have a EVM manual that is SNLU177 on May 2015. It is described the circuit as following.

Regards,
Kenshow

0 Dac Tran over 9 years ago in reply to kenshow

The EVM has be updated with the following INTB circuit:

0 kenshow over 9 years ago in reply to Dac Tran

Genius 3725 points

Hi,
Which revision of EVM has been updated since?
I have rev E1 board.

Thanks,
Kenshow

0 Dac Tran over 9 years ago in reply to kenshow

The revised EVM is also REV E1 but includes silkscreen text of 'DS90UB96X-Q1EVM' and 'TI logo' on upper right corner.

0 kenshow over 9 years ago in reply to Dac Tran

Genius 3725 points

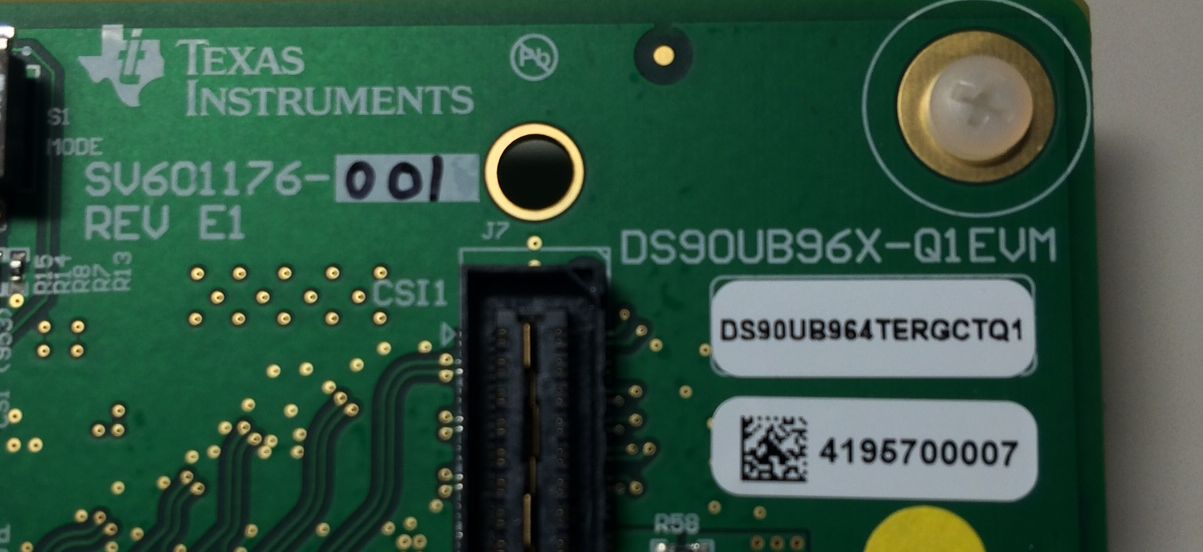

This is my EVM. But I could not find R76.

0 Dac Tran over 9 years ago in reply to kenshow

Correction:

The revised circuit is included for SV601176-### REV B

0 kenshow over 9 years ago in reply to Dac Tran

Genius 3725 points

Thank you very much.
