HD3SS6126 - Does HS_/OE have no effect to SuperSpeed line ?

Kawai

Guru 19785 points

Other Parts Discussed in Thread: HD3SS6126EVM

Hi Team,

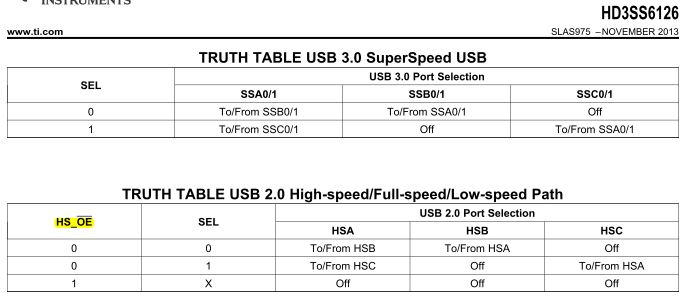

Please allow me to ask if HS_/OE pin affects SuperSpeed output or not. Customer says that it would not work as the truth table evaluating with the EVM.

I believe it would only disable High Speed Output only, regarding the truth table.

Best Regards,

Kawai

over 9 years ago

0 Diego Cortes over 9 years ago

TI__Mastermind 36085 points

Hello Kawai,

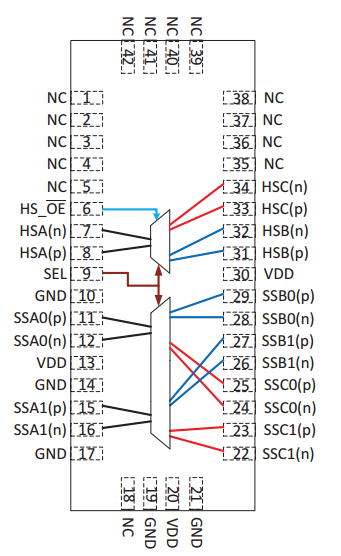

You are correct, please use the functional block diagram as an extra proof, where the HS_OE# is only connected to the HS mux.

Best regards,

Diego.

0 Kawai over 9 years ago in reply to Diego Cortes

Guru 19785 points

Hello Diego-san,

Thank you for your comment. Yes, I was also looking at this block diagram.

I found that the design of HD3SS6126EVM seems to turn off the power VDD=3.3V OFF when HS_/OE=High. What happens to the device MUX when VDD is not applied ? Is it switched to either channel or both channel disabled ?

Best Regards,

Kawai

0 Diego Cortes over 9 years ago in reply to Kawai

TI__Mastermind 36085 points

Kawai,

Both channels are disabled.

Regards,

Diego.

0 Kawai over 9 years ago in reply to Diego Cortes

Guru 19785 points

Hi Diego-san,

Thnak you for the answer.

Best Regards,
Kawai

Interface

Interface forum

HD3SS6126 - Does HS_/OE have no effect to SuperSpeed line ?
