SigCon Architect - DS110DF410 De-Emphasis level does not match the datasheet table.

Kawai

Guru 19785 points

Hi Team,

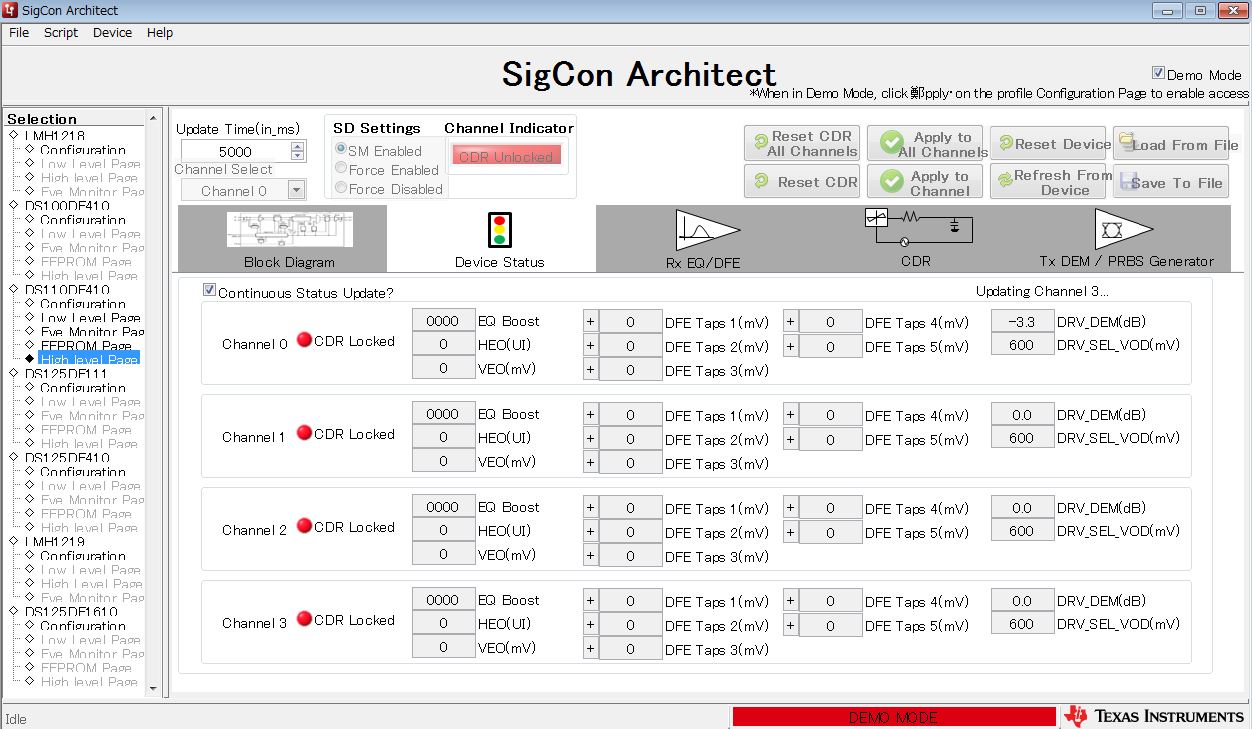

SigCon Architect seems to have some bugs in displaying DEM level in High Level Page. Could you please confirm ? I believe the datasheet value is true.

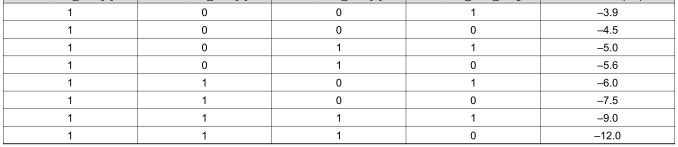

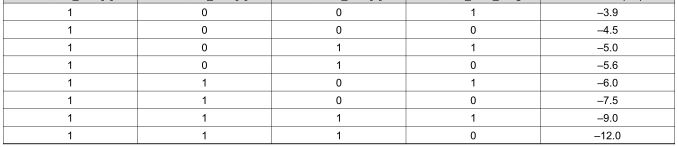

DEM setting does not match the value in the datasheet Table 13. Example below should show -3.9dB in High Level Page, as REG 0x15 = 0x54. It seems other setting also does not match the value in Table 13.

Best Regards,

Kawai

over 9 years ago

0 Rodrigo Natal over 9 years ago

TI__Mastermind 19235 points

Hi Kawai-san. Thanks for raising this item. I need to check it in the lab. I will advise by end of this work week.

Regards,

Rodrigo Natal

DPS Applications Engineer

0 Kawai over 9 years ago in reply to Rodrigo Natal

Guru 19785 points

Hello Rodrigo-san,

Did you have time looking into this issue ?

Best Regards,
Kawai

0 Rodrigo Natal over 9 years ago in reply to Kawai

TI__Mastermind 19235 points

Hi Kawai-san, sorry for delay. I will reply by close of business tomorrow.
-Rodrigo

0 Rodrigo Natal over 9 years ago in reply to Kawai

TI__Mastermind 19235 points

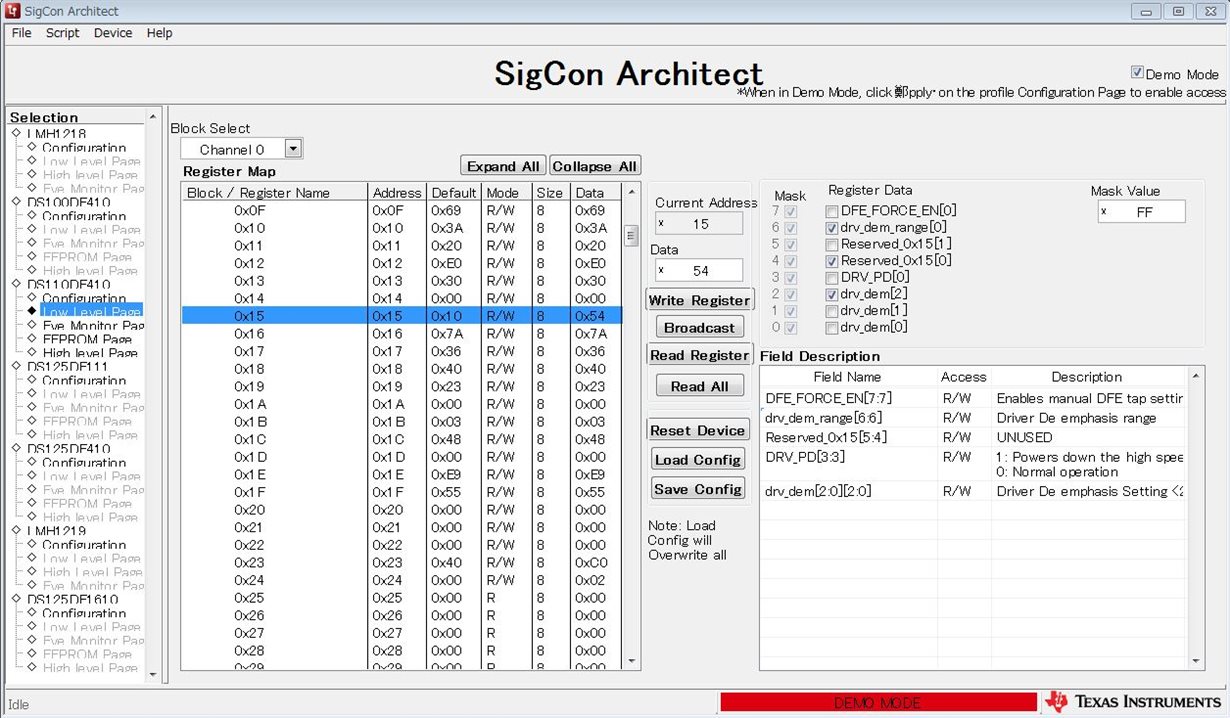

Hi Kawai-san. The customer is correct. When you enter a de-emphasis in the high level page and then check the register (0x15) in the low level page, the values in the applicable bits [6, 2:0] do not match those found in the datasheet in Table 13. This is true for all de-emphasis values except 0,-0.9, -1.5, -2, and -12.

My short term recommendation is to use the GUI low-level page to set the channel register 0x15 de-emphasis bits.

Regards,

-Rodrigo

0 Kawai over 9 years ago in reply to Rodrigo Natal

Guru 19785 points

Hello Rodrigo-san,

Thank you for checking. I hope this is fixed in the next update.

Best Regards,
Kawai
