Asking for the TPS65983 layout guide

SHH

Mastermind 32146 points

Hi Team,

For the TPS65983, did we have the recommended impedance layout suggestions for customer layout engineer?

How to get the 4mil or 3,5 mil suggestion value?

Thanks,

Scott

over 9 years ago

0 SHH over 9 years ago

TI__Mastermind 32146 points

Hi Team,
Can you help?

Thanks,
Scott

0 Jacob Ontiveros over 8 years ago in reply to SHH

TI__Expert 6280 points

Hi Scott,

Are you referring to the the SSTX/RX signals?

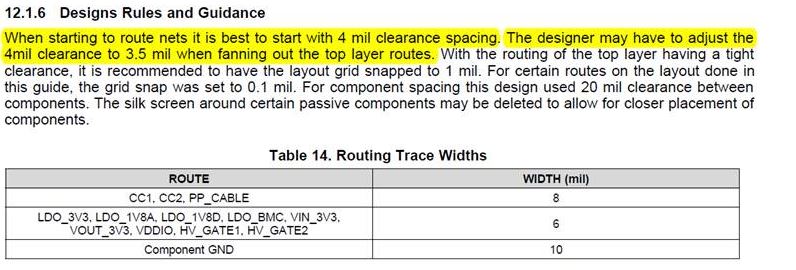

The 4mil clearance will allow for all of the signals to fanout on the layer where the BGA is placed. In some cases you can adjust the clearance to 3.5mil to allow for slightly tighter clearance.

Jacob
