PCA9306 in UART mode

Adrian Helwig

Expert 3860 points

Other Parts Discussed in Thread: PCA9306

Hello Team,

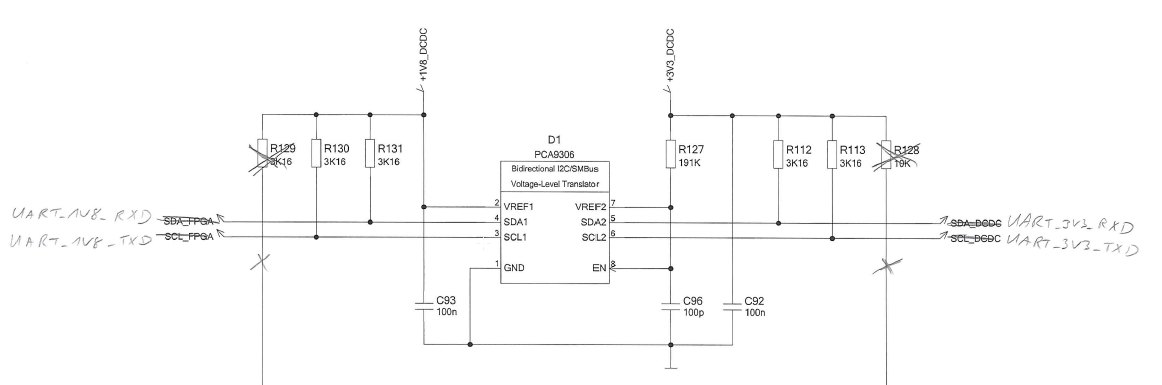

my customer would like to use PCA9306 in UART mode and translate from 1.8V to 3.3V. Like this:

Would that work?

thanks and regards

Adrian

over 9 years ago

0 user4766561 over 9 years ago

Prodigy 170 points

Hi Adrian,
I had the same for one of my application. I did not need an capacitor near enable, but I had for the bypass capacitor (100n) an parallel 10uF capacitor.

0 Adrian Helwig over 8 years ago in reply to user4766561

TI__Expert 3860 points

ok thanks,

so that should work, right?

regards

Adrian

0 Jonathan Valdez over 8 years ago in reply to Adrian Helwig

TI__Genius 16510 points

Adrian,

You are correct. THis translation setup should work fine.

The most important thing about translating with the PCA9306 is to make sure that VREF2 and EN are shorted together and then pulled up to your power rail (exactly as you have done).
