TPL0102 X2QFN-14 Recommended Land Pattern?

DMor

Other Parts Discussed in Thread: TPL0102-100

Hello, for the TPL0102-100 (X2QFN-14 or RUC Package), what is the recommended land pattern? I can't find much information on this specific package.

Much appreciated.

0 fhoude over 9 years ago

Hello DMor,

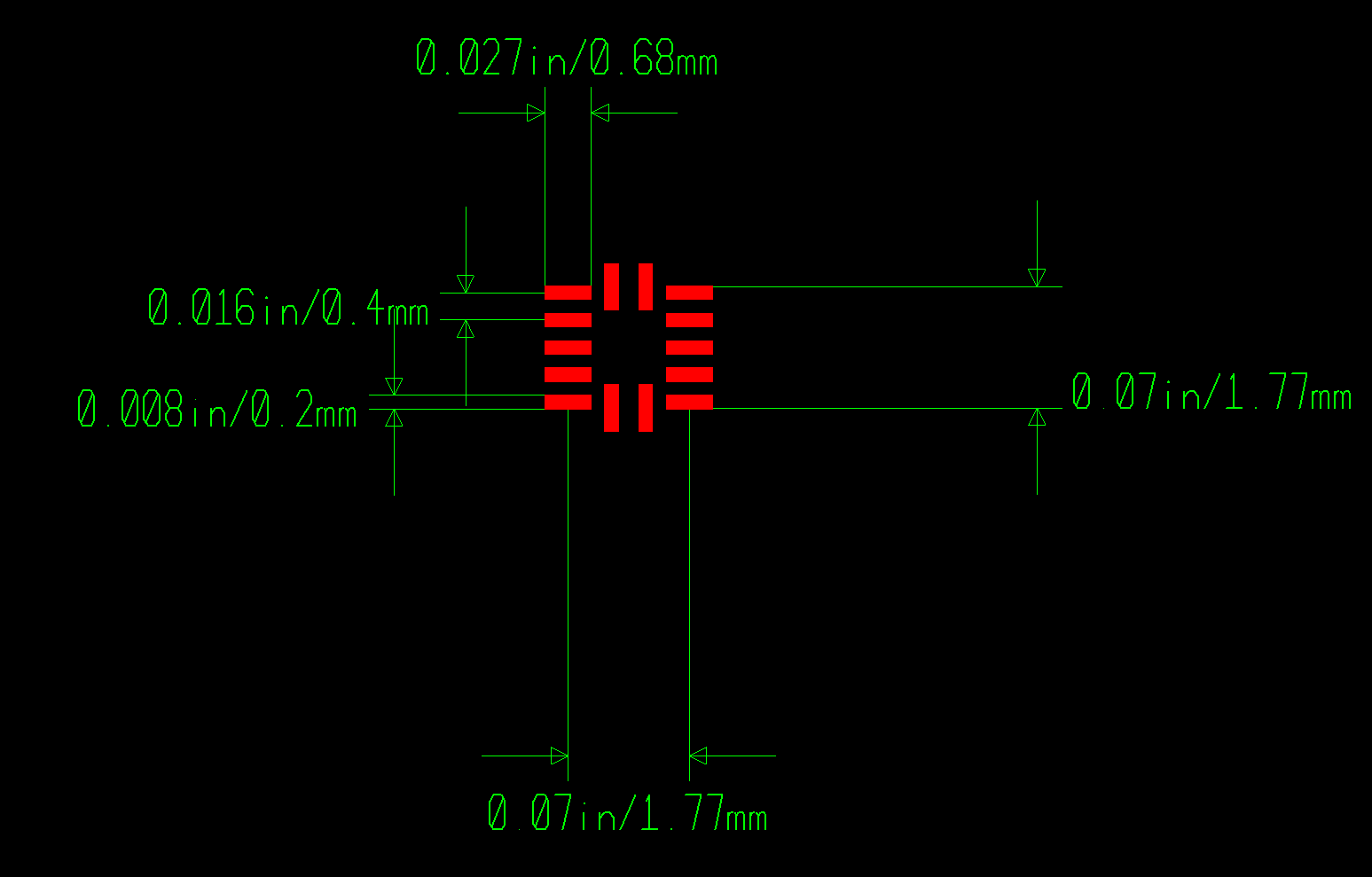

I have attached at image of the footprint for the X2QFN (RUC) package.

You can get almost all schematic symbols and footprints using Accelerated Designs free tool. Here is the link.

Let me know if you have questions.

Sincerely

Francis Houde

Interface forum
