SN75LVPE802 Two-Channel 8 Gbps SATA Express Equalizer and Redriver -- design issues

cary Wang

Other Parts Discussed in Thread: SN75LVPE802

My design is connect a external pcie card to desktop pc pcie slot via one meter long cable .

can i use SN75LVPE802 both at external pcie card and desktop pc's pcie convert card to get the better performance?

and can i use SN75LVPE802 only to receive remote transmit signals , and let local transmit signals bypass the SN75LVPE802 ?

best regards!

wangyan

0 Moises Garcia over 8 years ago

Hi WangYan,

I'm not sure I'm understanding, could you provide a block diagram of your intended application?

Regards

0 cary Wang over 8 years ago in reply to Moises Garcia

0 cary Wang over 8 years ago in reply to cary Wang

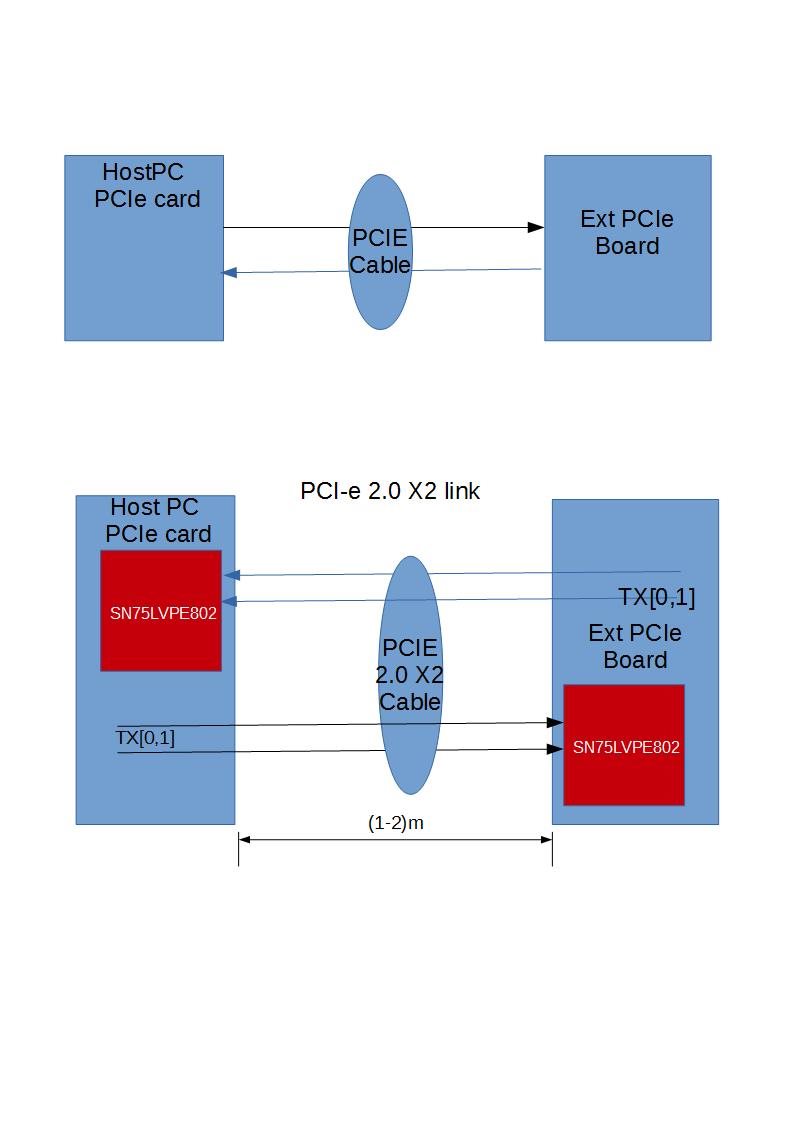

Attached the diagram.

0 Moises Garcia over 8 years ago in reply to cary Wang

Hi WangYan,

SN75LVPE802 has both Rx and Tx channels, 2m cable would be too much in the output trace.

You may need to take a look at LVPE801 and place them after 2m cable

Regards
