TUSB322 - CC1/CC2 connection with Type C connector

Kawai

Guru 19785 points

Other Parts Discussed in Thread: TUSB542, TUSB322

Hi Team,

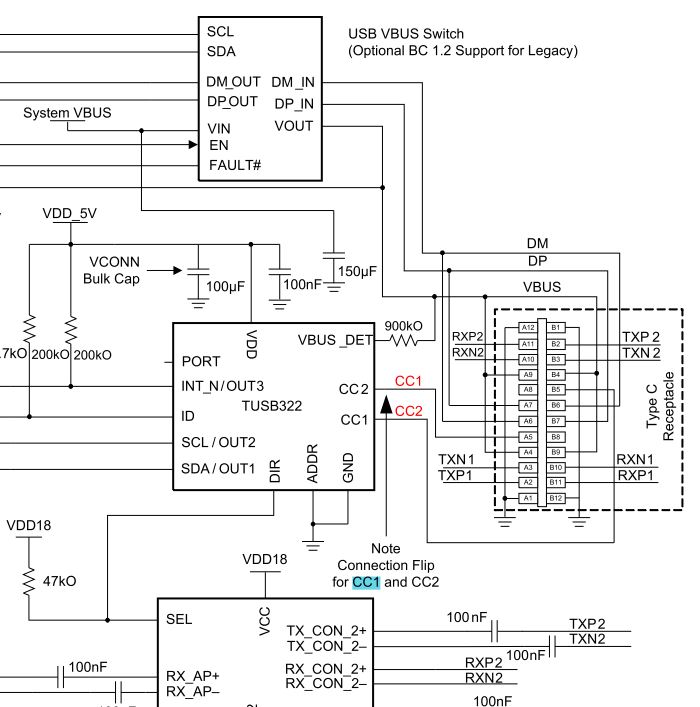

Why does Figure 16 in TUSB542 datasheet notes that CC1 and CC2 connection flip, in page 16 ?

I thought type C CC1 and CC2 could be connected in the either way, i.e. doesn't matter which CCx is connected to CCx of TUSB322. Were there any limitation ?

Best Regards,

Kawai

over 9 years ago

0 Diego Cortes over 9 years ago

TI__Mastermind 36085 points

Hello Kawai,

This invertion on the CC pins is because the TUSB542 has a SEL pin with inverted logic, compared with the DIR pin on the TUSB322, so we flip the CC pins in order to compensate this logic invertion between the TUSB322 & TUSB542.

Regards,

Diego.

0 Kawai over 9 years ago in reply to Diego Cortes

Guru 19785 points

Hello Diego-san,

Thank you for the answer.

Best Regards,
Kawai
