PC couldn't recognize TUSB3410 by usb

Jim CHEN

Expert 4795 points

Other Parts Discussed in Thread: TUSB3410

Hi Sir,

I download win7 driver from TI WDF USBUART Single Driver (Rev. A) (ZIP3628KB ) 3,844views,03 Apr 2013

It seems our PC couldn’t recognize TUSB3410.

How could I troubleshooting it?

When I plugin in usb into PC.

It will show “USB power surge”. Win7 will shutdown the usb port.

Do you encounter this behavior?

Thank you

over 8 years ago

0 Clemens Ladisch over 8 years ago

Guru 317000 points

That message would imply a hardware defect. Which hardware are you using?

0 Jim CHEN over 8 years ago in reply to Clemens Ladisch

TI__Expert 4795 points

Hi Clemens Ladisch,
My customer's notebook is Lenovo T430(Win7 64bit).
And they also try another PC(Win7 32bit) to connect TUSB3410.
It also show up “usb device not recognised”

Jim

0 Clemens Ladisch over 8 years ago in reply to Jim CHEN

Guru 317000 points

What is the hardware into which you have built the TUSB3410?

0 Jim CHEN over 8 years ago in reply to Clemens Ladisch

TI__Expert 4795 points

Hi Clemens,

Sorry I didn't get it.

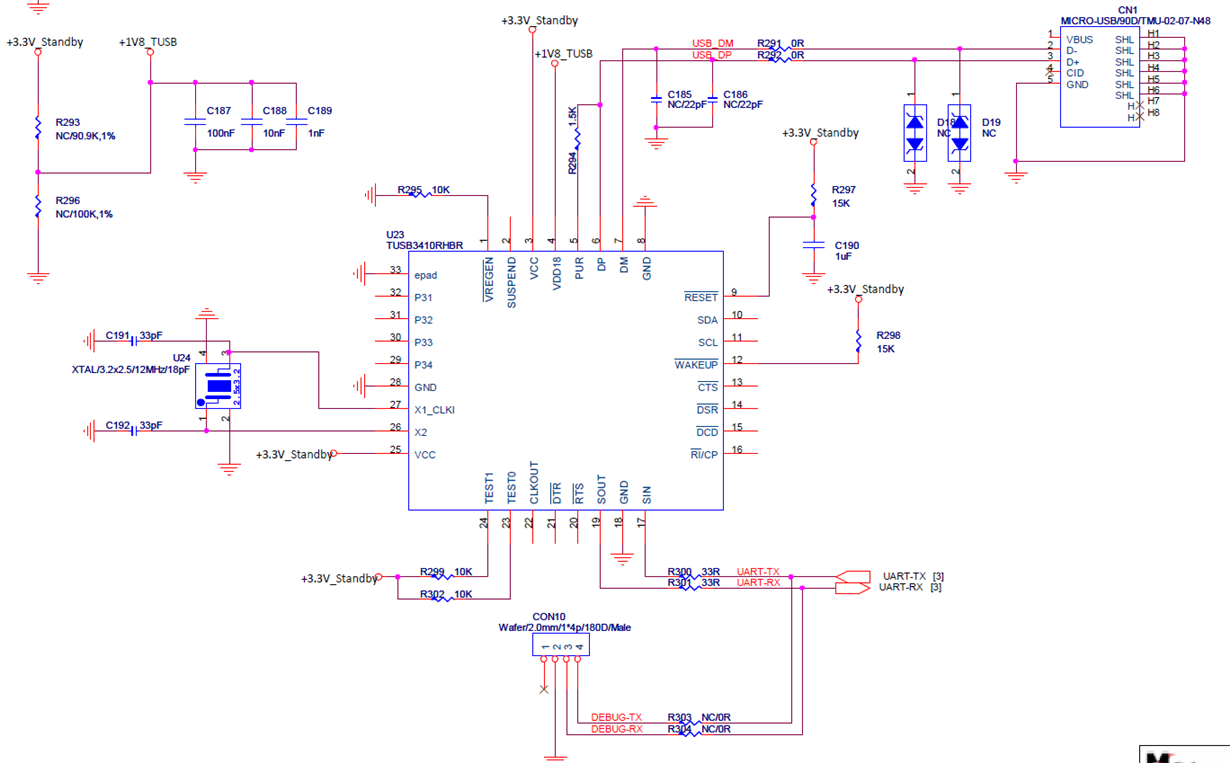

The hardware you said is on the left side of below picture?

Thank you

0 Clemens Ladisch over 8 years ago in reply to Jim CHEN

Guru 317000 points

I meant the board on which the TUSB3410 is soldered, i.e., the board you've shown. Did you make it yourself, or did you buy it from somewhere?

0 Jim CHEN over 8 years ago in reply to Clemens Ladisch

TI__Expert 4795 points

Yes, TUSB3410 is on my customer's board.
Could you check the schematic for me?
I'll provide it later.

Thank you

0 Clemens Ladisch over 8 years ago in reply to Jim CHEN

Guru 317000 points

The message "USB power surge" is not generated by the TI driver, but by the OS. It shows that the overcurrent protection of the host controller was triggered. This could be a defect in the cable or on the board (something shorted), or a design error in the circuit.

0 Jim CHEN over 8 years ago in reply to Clemens Ladisch

TI__Expert 4795 points

So do you know how to clarify this issue?

Is it helpful to measure the signal integrity?

Could you help on schematic review as well?

0 Clemens Ladisch over 8 years ago in reply to Jim CHEN

Guru 317000 points

Full-speed drivers must have an impedance between 28 Ω and 44 Ω (see section 7.1.1.1 of the USB 2.0 spec). The datasheet shows series damping resistors of 33 Ω; 0 Ω certainly is wrong.

Why were C185/C186 omitted?

Is VBUS really open?

0 Jim CHEN over 8 years ago in reply to Clemens Ladisch

TI__Expert 4795 points

Hi Clemens,

They tried to apply your suggestions, but PC can’t recognize it as well.
R291,R292 => 33 ohm
C185,C186 => 22pF

Could you please share how to debug?

0 Clemens Ladisch over 8 years ago in reply to Jim CHEN

Guru 317000 points

Check whether there is a short between any of the four USB pins.

Connect it to a Linux PC, and check whether there are any error messages in the system log.

Interface

Interface forum

PC couldn't recognize TUSB3410 by usb
