TUSB522 put location

Chen Bogey8

Other Parts Discussed in Thread: TUSB501

Hi Sir

My customer survey USB3.0 redriver, and they have find PI3EQ~~ this is similar our TUSB501.

but i find we also have TUSB522. May you pls advise which part more suit customer?

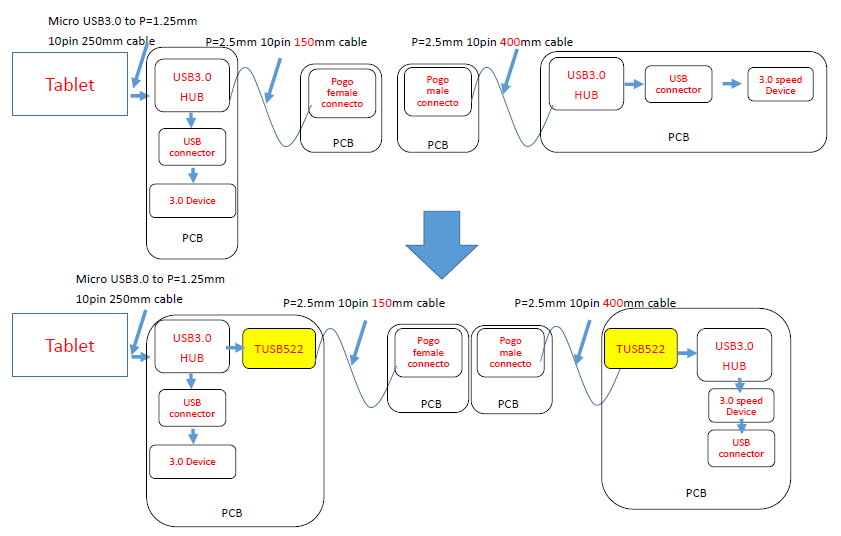

If choice TUSB522, May we check which it should place which location much better. is something we also need take note? pls advise.

Bogey

over 8 years ago

0 Diego Cortes over 8 years ago

TI__Mastermind 36085 points

Hello Chen,

Please include the trace length for each PCB, so I can estimate the channel loss and suggest the placement position for the TUSB522, which is the best option we have for 5Gbps re-drivers.

Regards,
Diego

0 Chen Bogey8 over 8 years ago in reply to Diego Cortes

Mastermind 9990 points

Hi Sir

Main/Dock board PCB trace about 8cm，Pogo F/Pogo M about 2cm.

Bogey

0 Diego Cortes over 8 years ago in reply to Chen Bogey8

TI__Mastermind 36085 points

In this case I think the best option is to use only one TUSB522 in either of the boards between the cables.

Regards,
