DP83849I, LED on Pin19 works unnormal

user4363042

Other Parts Discussed in Thread: DP83849I, DP83849IF

Dears,

I used DP83849I with AVAGO optical transceiver module, If I connected the RX of A, and whether I connected the TX of A or B,the LED of the module A will on.Module B is the same as A.Sometimes there were no connection on either A or B,the LED would be on too.

How about this?Why?There's my schematic.

DP83849IDVS.pdf

over 8 years ago

0 Ross Pimentel over 8 years ago

TI__Mastermind 23675 points

Hi,

What part are you using?
DP83849I does not support Fiber.

The DP83849IF does though. Can you show me what you mean by the above statements in a block diagram of the connections. I am having a difficult time following.

Kind regards,
Ross

0 user4363042 over 8 years ago in reply to Ross Pimentel

Intellectual 360 points

Hi Ross,

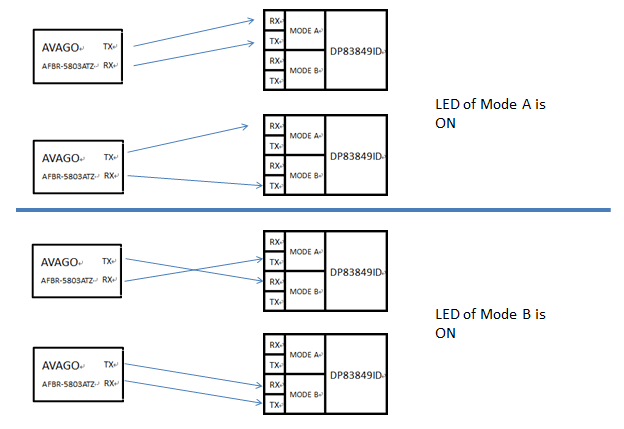

The block diagram is as above.Sometimes there is no connection on either A or B,the LED would be on too.

0 Aniruddha Khadye over 8 years ago in reply to user4363042

TI__Mastermind 18425 points

Hello,

There are two types of LEDs on the schematics, LINK LED and ACTIVITY LED. Which LED would is on? Also, what is connected on the cable side of Avago fiber transceiver?

-Regards,
Aniruddha

0 user4363042 over 8 years ago in reply to Aniruddha Khadye

Intellectual 360 points

Hello,

The Link LED would be on.

0 Ross Pimentel over 8 years ago in reply to user4363042

TI__Mastermind 23675 points

Hi,

Are you using the Signal Detect pin from the fiber transceiver?
Have you scoped out the SD pin from the transceiver to see how this pin behaves?

Kind regards,
Ross

Interface

Interface forum

DP83849I, LED on Pin19 works unnormal
