HD3SS460: HD3SS460 layout trace impedance

daniel
Genius 5095 points
Part Number: HD3SS460

Dear Team,

Please help to confirm the impedance of these differential signals.

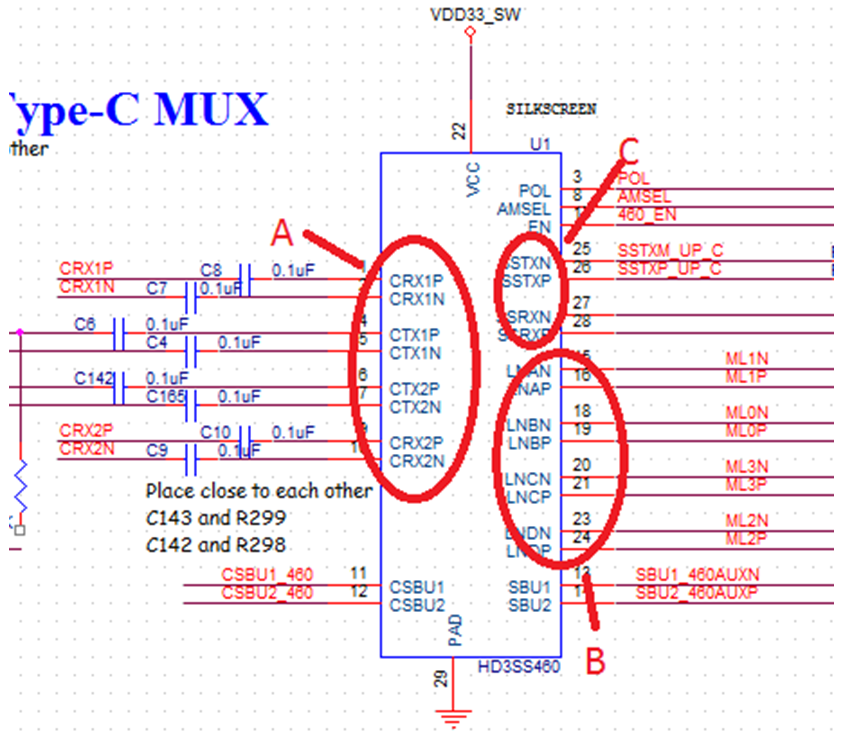

I think (C) USB3.0 is 90 ohm, and (B) DP is 85 ohm. Is that right?

How about the (A) impedance?

Thanks
