SN65DP141: TX side and RX side setting

Jerry Chu

Part Number: SN65DP141
Other Parts Discussed in Thread: TUSB546-DCI

Hi Expert,

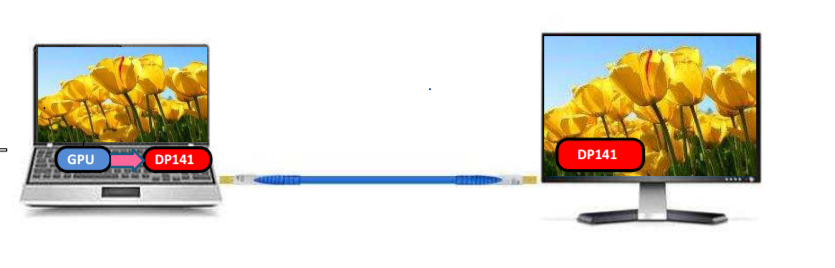

I saw the datasheet mention about DP141 could be TX side and RX side re-driver. My customer used it in TX side for 5m cable, but my customer got the error bit in GPIO mode.

Do you have suggestion I2C setting for the application? BTW, does the "DRV_PEAK" is the pre-emphasis function? Thanks!

over 8 years ago

0 Moises Garcia over 8 years ago

TI__Mastermind 23815 points

Hi Jerry,

This device doesn't have pre-emphasis, it is a linear redriver.
Do you have eye-diagrams we can review?
For DP1.3/1.4 we are recommending TUSB546-DCI instead of DP141.

Regards

0 Jerry Chu over 8 years ago in reply to Moises Garcia

Genius 4915 points

Hi Moises,
But it's already in the PCB. Any suggestion for TX side?

0 Moises Garcia over 8 years ago in reply to Jerry Chu

TI__Mastermind 23815 points

Hi Jerry,

You could increase Tx gain, I would need eye diagrams to debug the issue.
The problem may be jitter, skew, or x-talk that come from the layout.
Could you share schematic and layout for review?

Regards
