P82B96: I2C bus length extension

Seishin

Genius 4135 points

Part Number: P82B96
Other Parts Discussed in Thread: P82B715

Hello,

I'd like to extend the I2C bus using two P82B96 buffer chips.

＜Requirement＞
・I2C bus speed 　400KHz
・Between 400 MHz band radio equipment and external I2C device
・Distance 10m

Can P82B96 support this application?

Are there other recommended devices?

Best regards,
Seishin

over 8 years ago

0 Matt Mendez over 8 years ago

TI__Intellectual 2885 points

Hello Seishin,

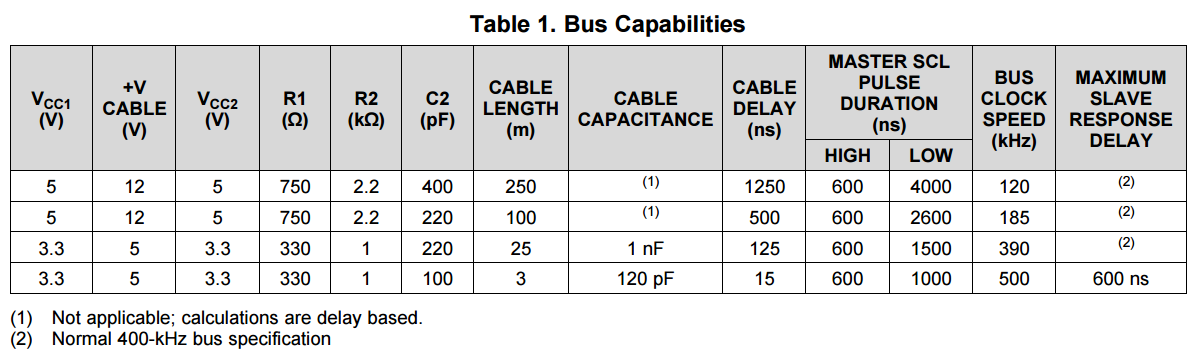

Yes, this device will support your application. Table 1 shows the different speeds and distance this device can operate in. at a cable length of 25m the clock speed is 390 kHz, and at 3m the speed is 500 kHz. 10m is slightly lower than the median distance between 25m and 3m, and should be able to support 400 kHz.

0 fhoude over 8 years ago in reply to Matt Mendez

TI__Mastermind 23116 points

Hello Seishin,
We also have the P82B715 that might be of interest too. They are quite similar but do have some differences.
-Francis Houde

0 Seishin over 8 years ago in reply to fhoude

Genius 4135 points

Dear Matt and Francis:

Thank you very much.

Best regards,
Seishin
