TPS2001C: The dimension of thermal pad

Tao_2199

Genius 5770 points

Part Number: TPS2001C

Hello,

Regarding to thermal pad on TPS2001C, my customer have a question.

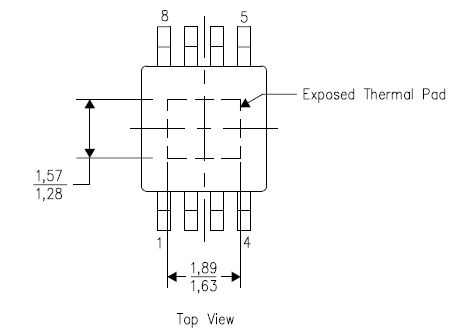

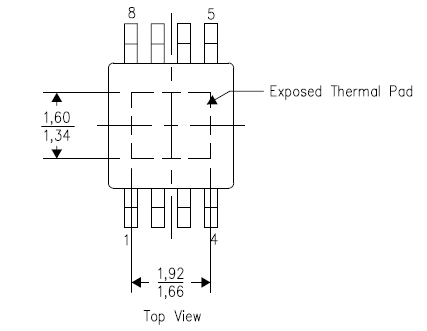

It is described on page 37 and page 39 but each dimensions is different.

Which the dimension should we refer?

Regards,

Tao_2199

over 8 years ago

0 Michael Tan over 8 years ago

TI__Expert 8420 points

Hello,

That is different package one is DGN(S-PDSO-G8) anthor is DGN(R-PDSO-G8).

0 Tao_2199 over 8 years ago in reply to Michael Tan

Genius 5770 points

Hello Michael,

Thank you for reply.
But either dimensions (page 37/39) are same title. (DGN( S-PDSO-G8))
Page 37 : DGN( S-PDSO-G8)?
Page 39 : DGN( R-PDSO-G8)?
My understanding is correct?
Could you please tell me correct title.?

Regards,
Tao_2199

0 Michael Tan over 8 years ago in reply to Tao_2199

TI__Expert 8420 points

Hi ,
Yes, it is.
