SN75DP139: Thermal PAD connection

Kuramochi Tadahiko

Guru 28715 points

Part Number: SN75DP139

Hi,

My customer is considering to use SN75DP139RGZ..

Can the thermal pad be connected to GND?

Connection of thermal pad of RGZ package is not mentioned on the datasheet.

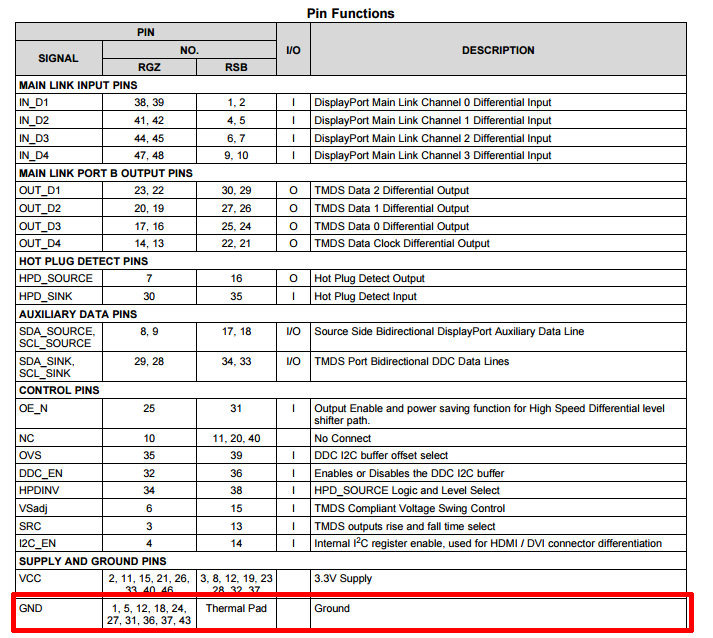

(However RSB backage of thermal pad is mentioned as follows.

Best Regards,

Kuramochi

0 Moises Garcia over 8 years ago

Hi TQ,

Yes, please connect the thermal pad to GND on RGZ package too.

Regards

0 Kuramochi Tadahiko over 8 years ago in reply to Moises Garcia

Guru 28715 points

Hi Garcia-san,

Thank you for your answer.

Must thermal pad be connected to the GND?

Or can it be floated?

Best Regards,

Kuramochi

0 Moises Garcia over 8 years ago in reply to Kuramochi Tadahiko

Hi TQ,

The DP139RGZ thermal pad is not electrically connected, please connect it to GND for proper thermal dissipation.

Regards
